COLOUR OPTIONS

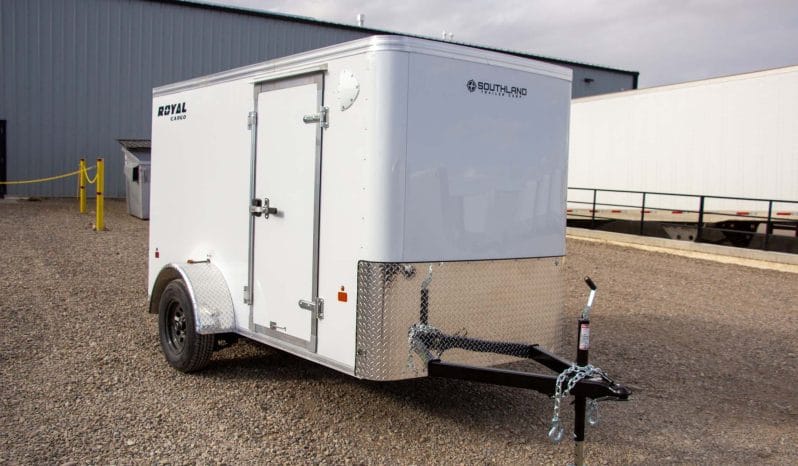

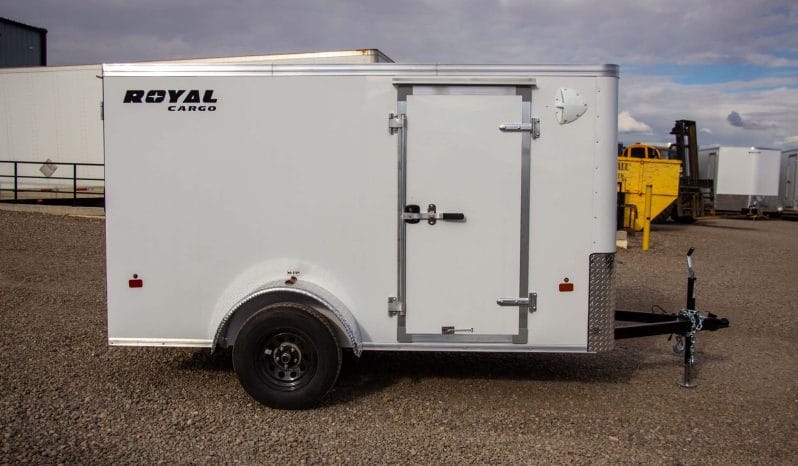

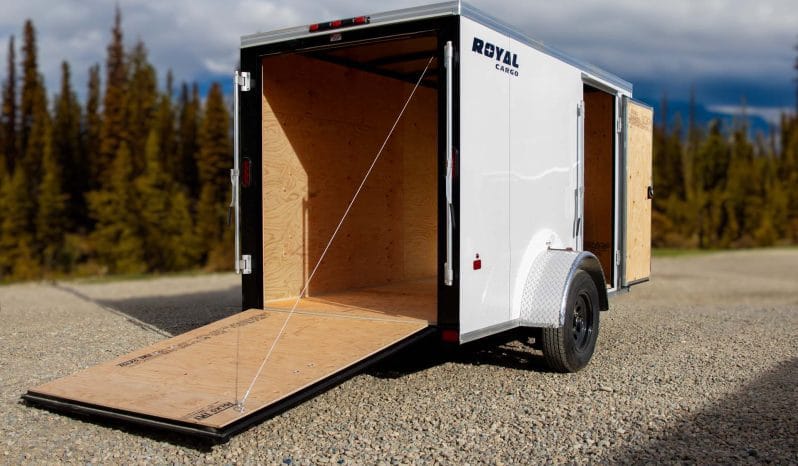

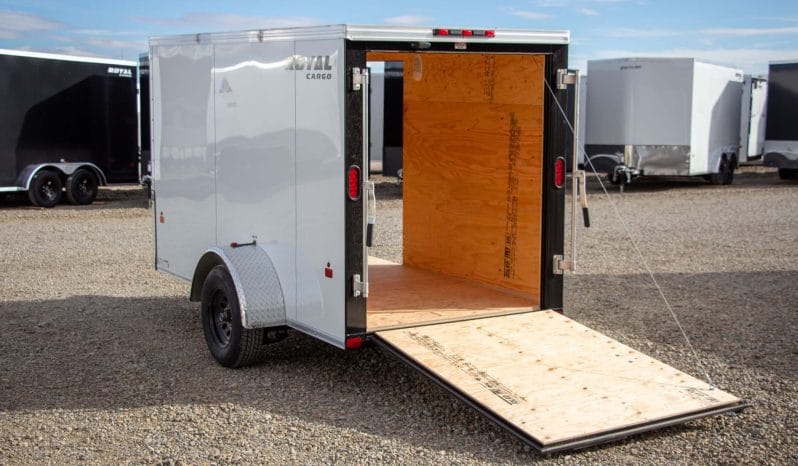

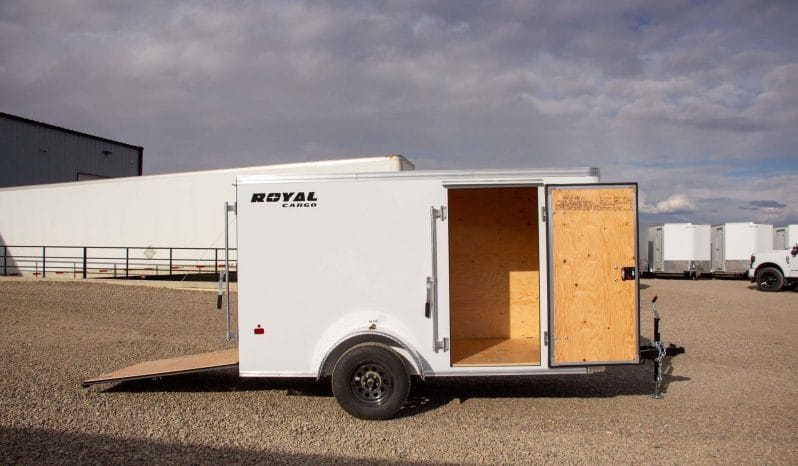

Enclosed Cargo Trailer 5′ W x 10′ L – 64″ Wall Height
Enclosed Cargo Trailer 5′ W x 10′ L – 64″ Wall Height
ALL-WEATHER PERFORMANCE

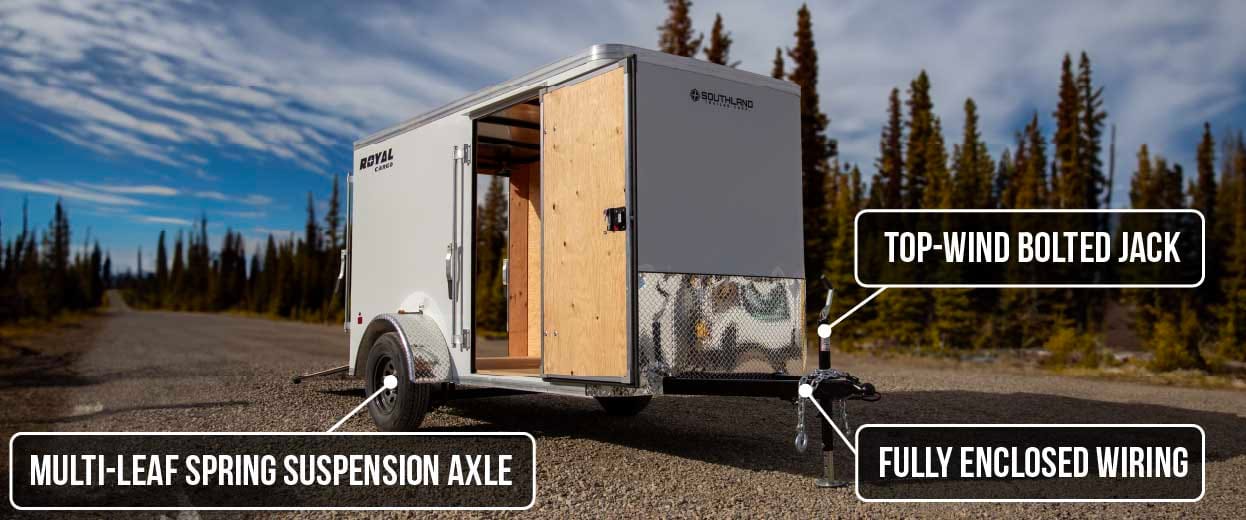

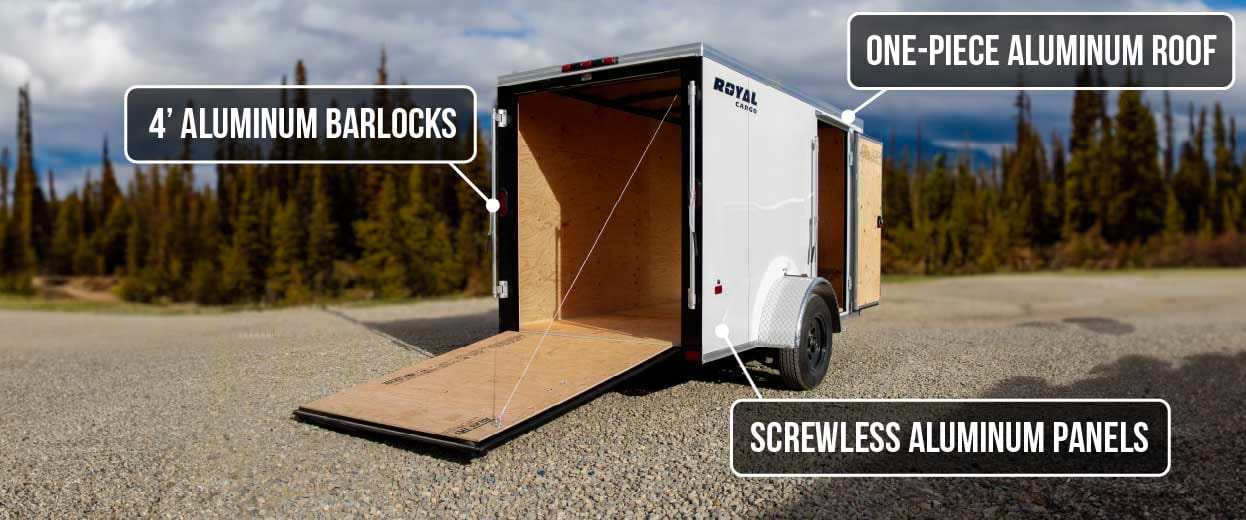

Royal Cargo Trailers are built to handle any weather with a rivetless aluminum exterior, one-piece aluminum roof, and enclosed wiring for extra protection. Your cargo stays safe and dry — even in the toughest conditions.
COLOUR OPTIONS
SPECIFICATIONS & STANDARD FEATURES

Axle | (1) 3,500 lb. |
Jack | 2,000 lb. Top-Wind Bolted |
Brakes | None |
Attachment Style | 2 5/16" |
Crossmembers | Steel HSS 2.0” X 2.0” |
Curb Weight (lb.) | 1,009 - 1,381 lb. |
GVWR (lb.) | 2,900 lb. |
Main Rails | Steel HSS 3.0" X 2.0 |
Payload Capacity (lb.) | 1,519 - 1,891 lb. |
Side Door | 36”x60”,66” or 72” with RV Latch |
Suspension | Multi-Leaf Spring |
Wheels | 205/75R14 C Steel |
Coupler | 10,000 lb. Stamped |
