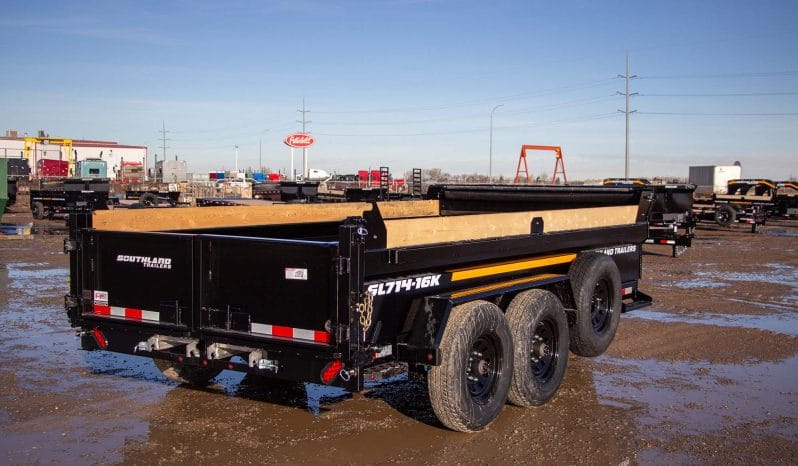

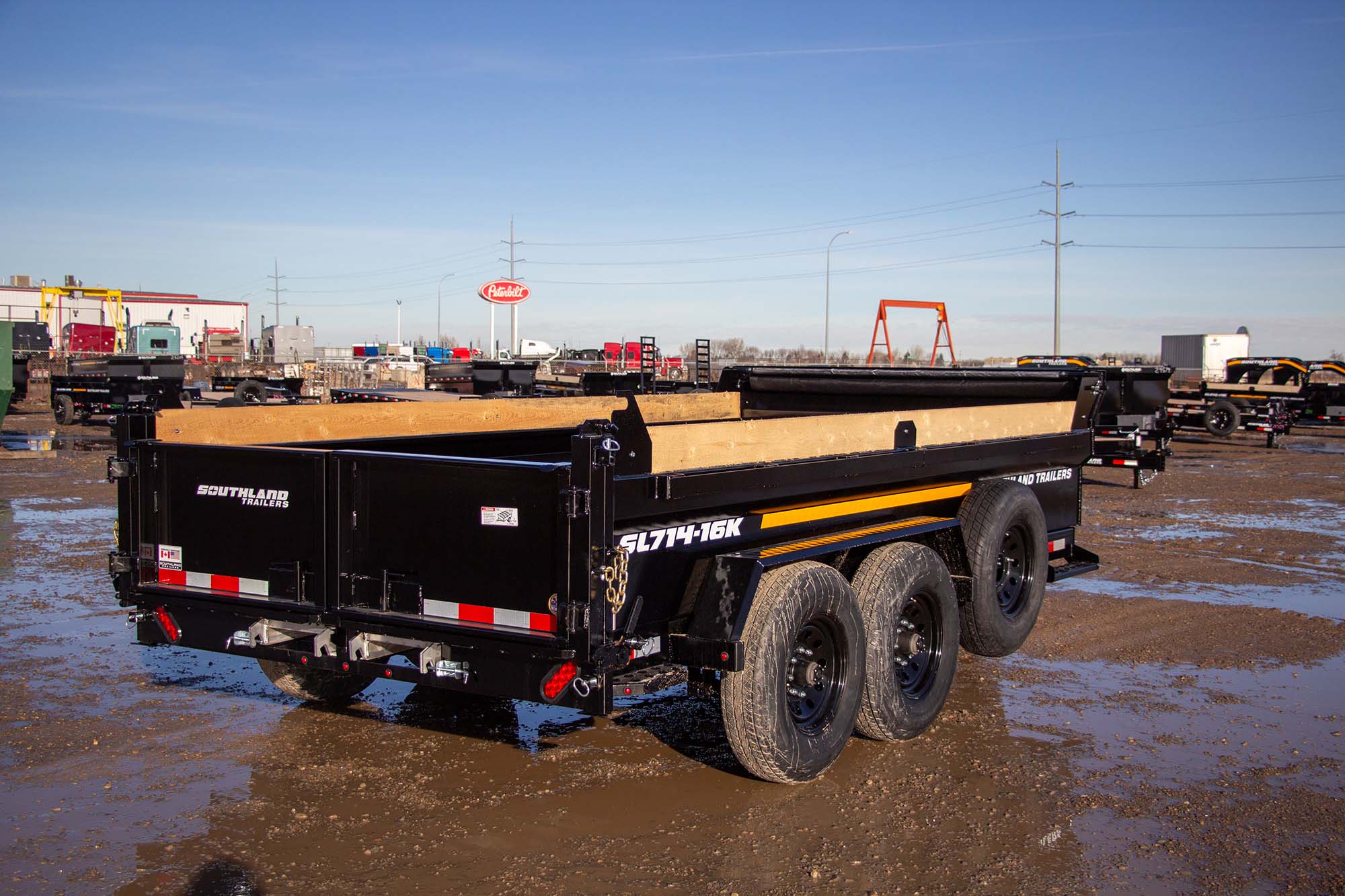

7′ x 14′ Dump Trailer
Build your trailer
Select your configuration below. Specs update automatically.
Axle
Wall Style
Package
Live Specifications
Download PDF
Axle
(2) 8,000 lb Lippert Spring
Hoist
Scissor Hoist 6” Bore X 15” Stroke 9 Ton

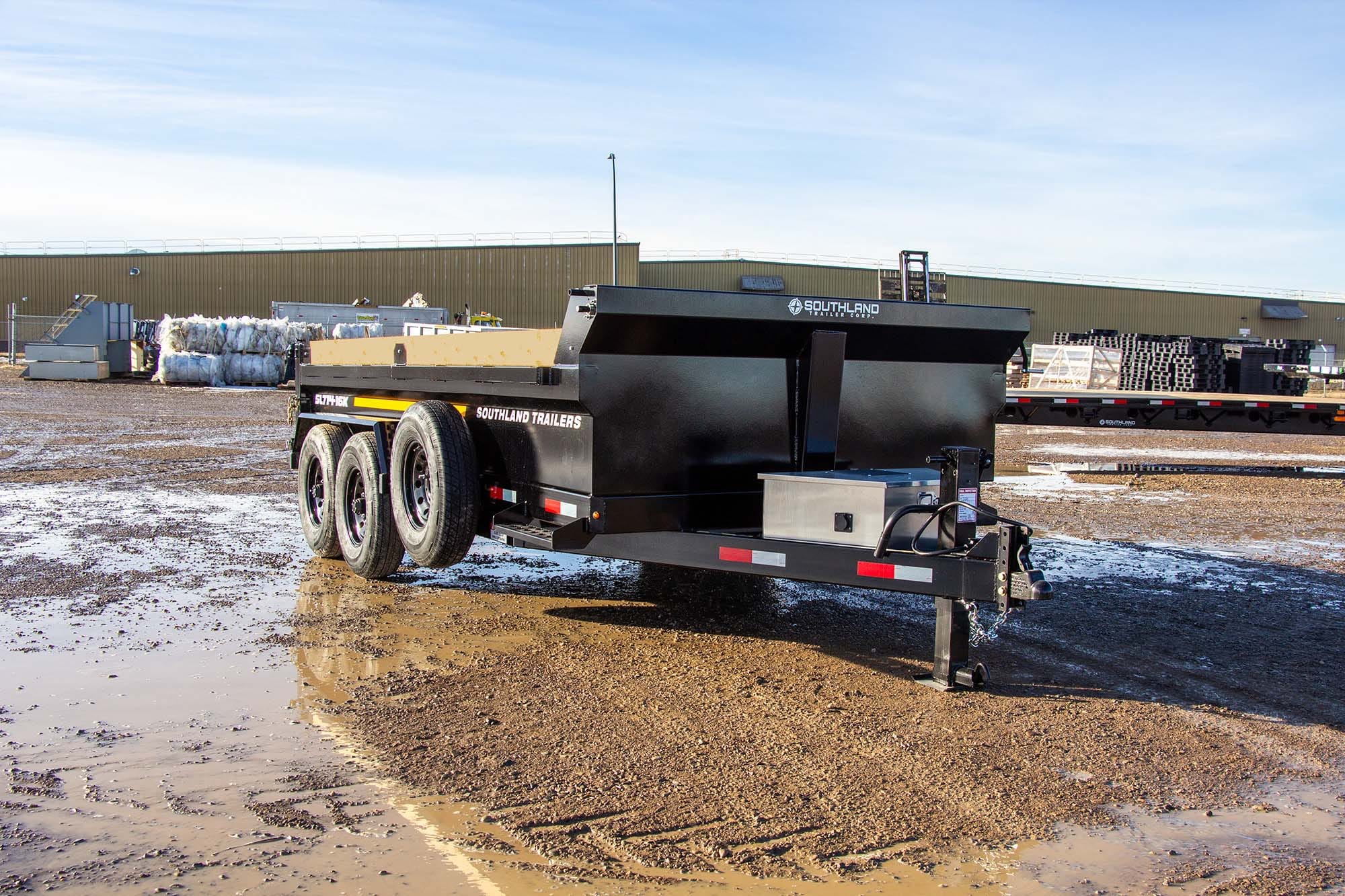

Jack
12,000 lb, Bolted, Side Wind

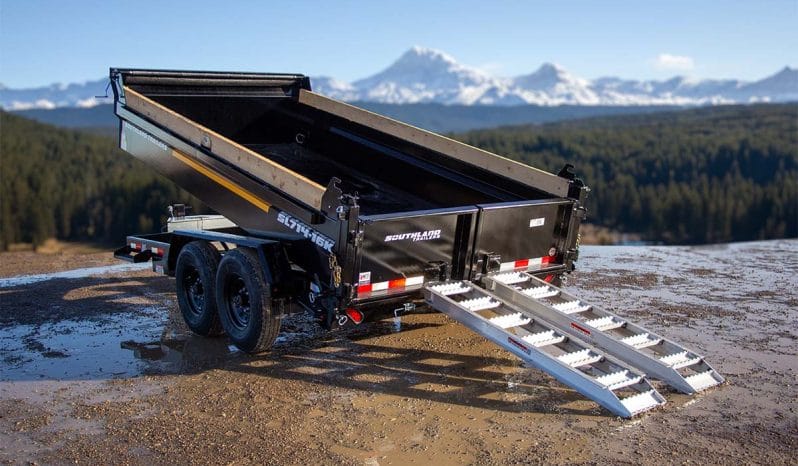

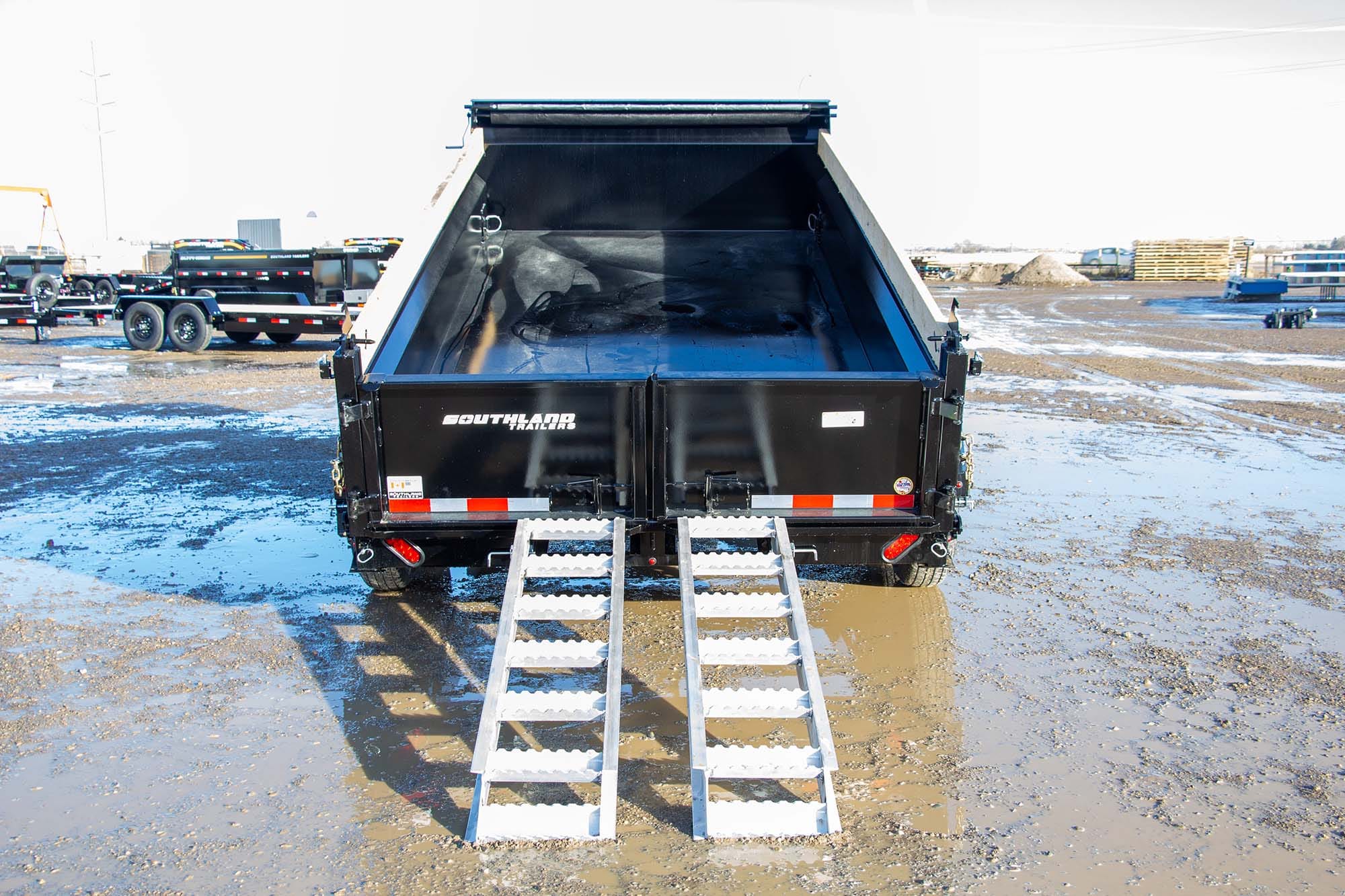

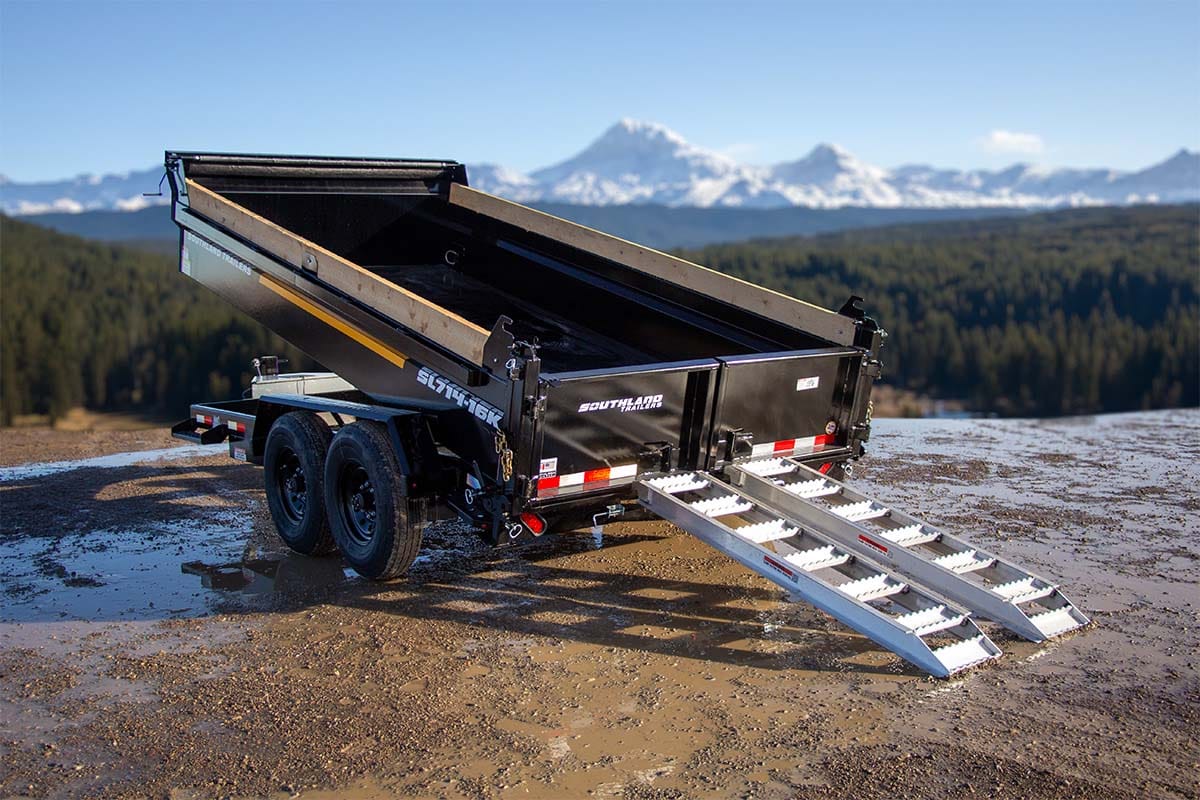

Ramp
(2) 4,500 lb Midspan Ramps (33 lbs Each)
Wheels
235/85R16 F Steel

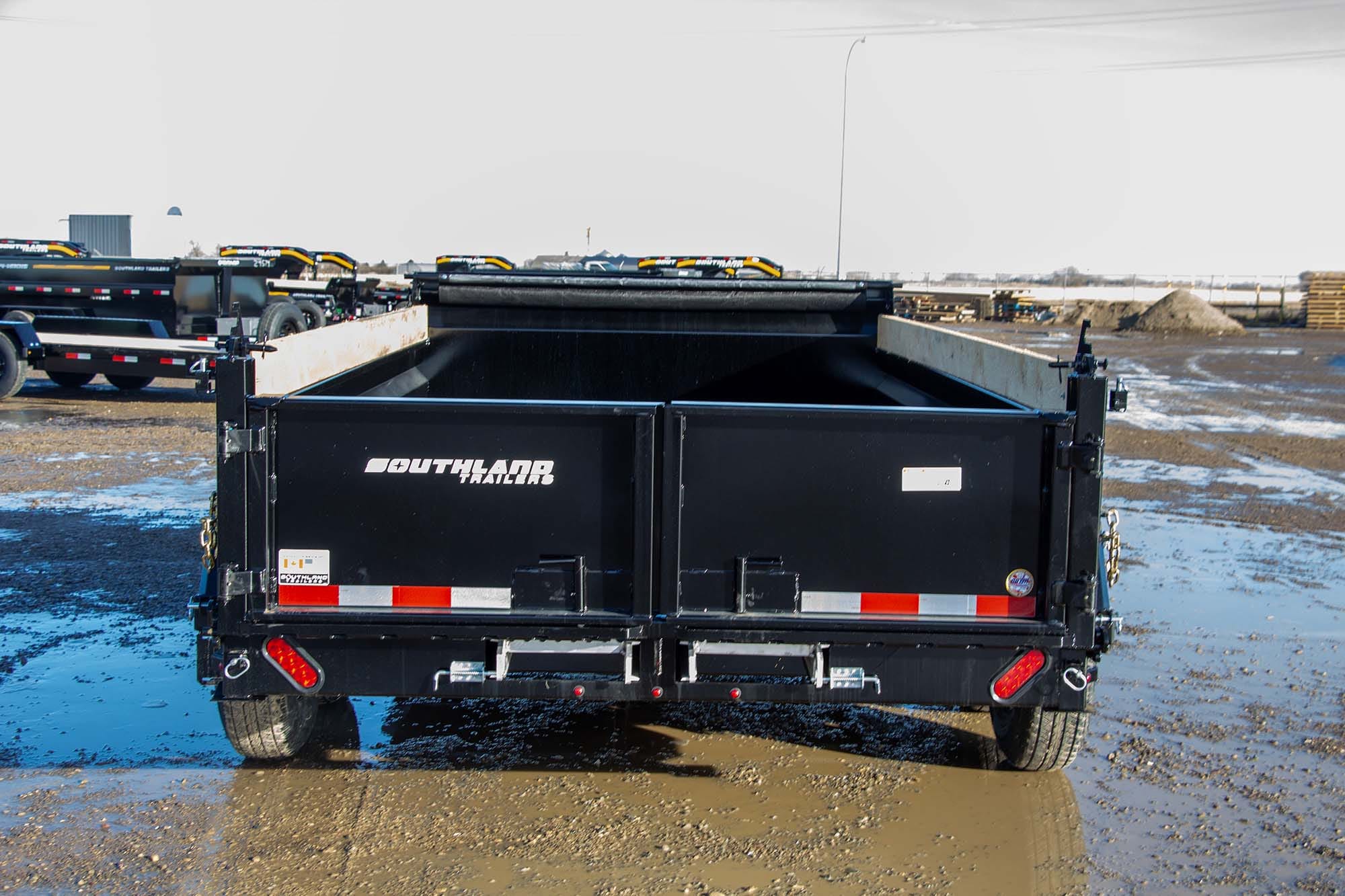

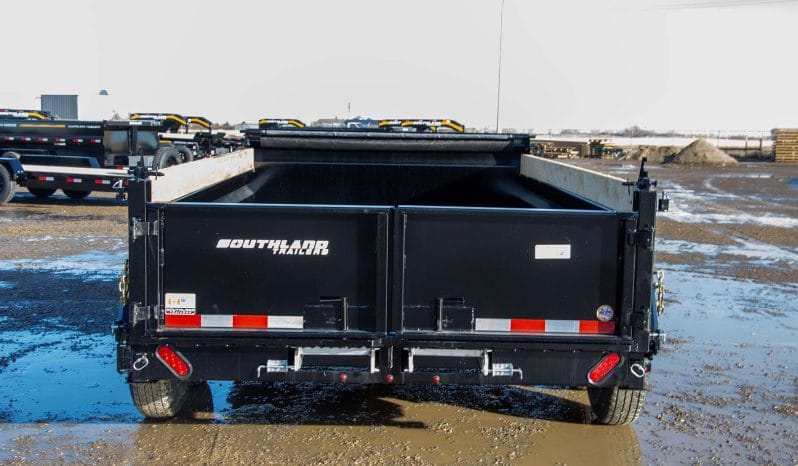

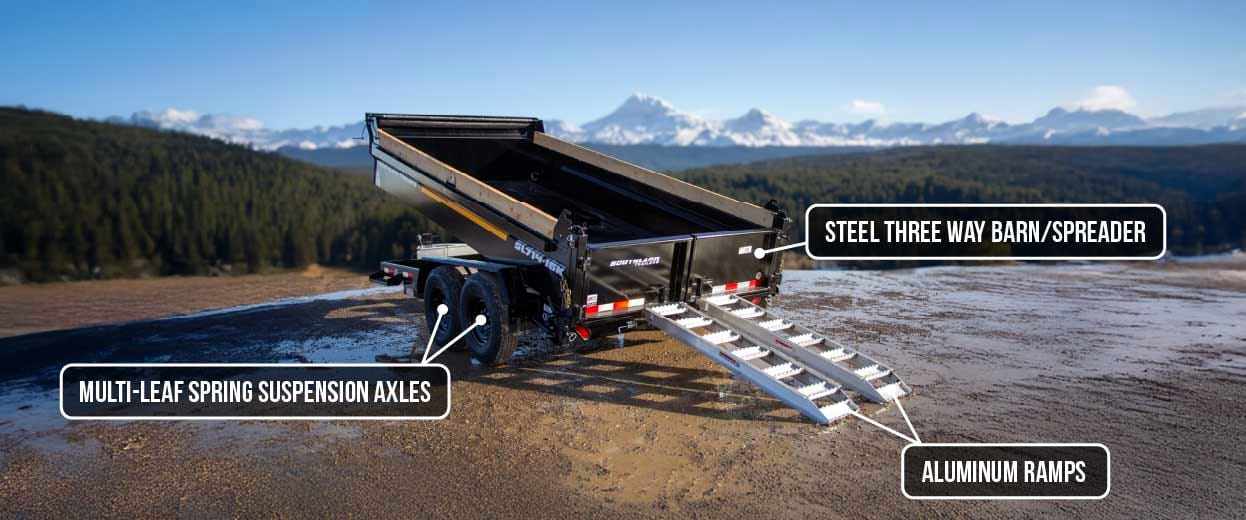

Tailgate
Steel 3-Way Barn/Spreader
Coupler
21,000 lb. Demco Adjustable
Floor & Wall
10ga Floor / 10ga Wall
Frame
6 X 2 HSS
Lights
LED
Electric Plug
Cold Weather 7 Wire RV
Brakes
Electric
Safety Chains
16,200 lb 5/16” w/Clevis Slip Hook
Paint Specs
PPG 2-Part Epoxy DTM

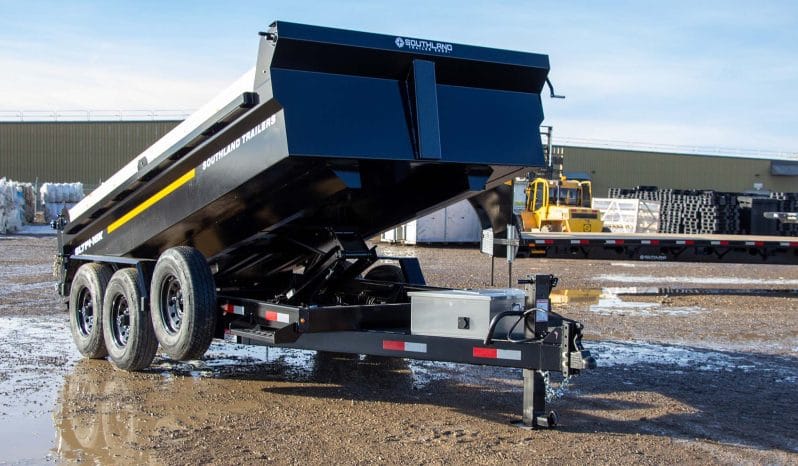

Dump Angle
45°
Rating Set
Standard
Length (ft)
14
Net Weight (lb)
4078
GVWR (lb)
17420
Payload Capacity (lb)
13342
Dimension A
55 1/16”
Dimension B
112 15/16”
Dimension C
168”
Dimension D
179”
Dimension E
25 3/8”
Dimension F
232 7/8”
Dimension G
168 3/8”
TRAILER FINANCING
Financing options available through participating partners.
Financing Available
View Partnerships & Rates
Interactive Features
Strength to Weight Ratio
Strength to Weight Ratio
Fully Enclosed Wiring
Fully Enclosed Wiring
Fully Enclosed Wiring

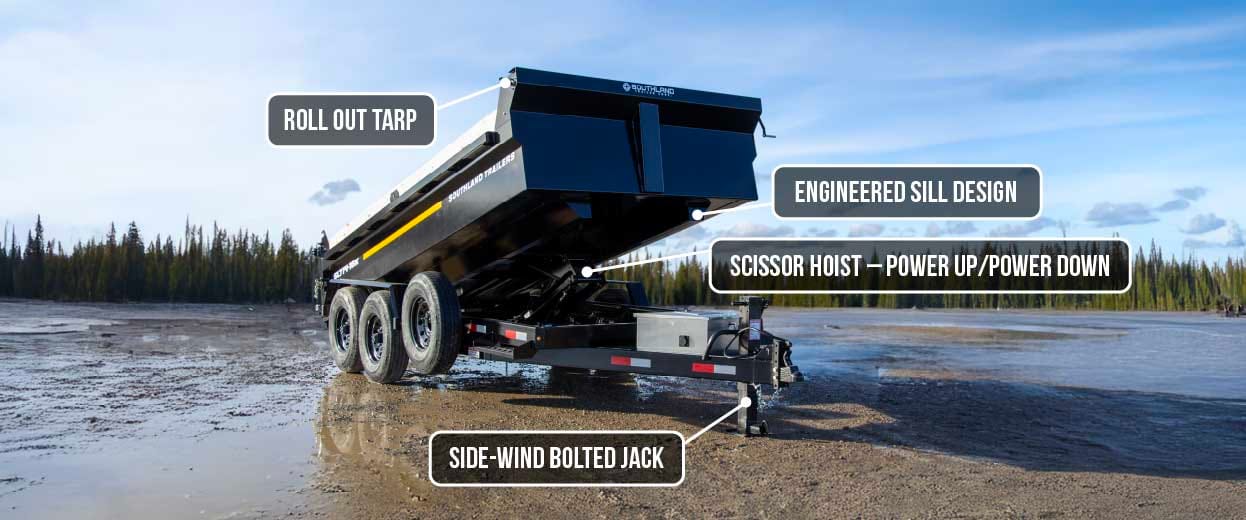

Engineered Sill Design
