Technical Specs
Get the full breakdown of dimensions and capacities.

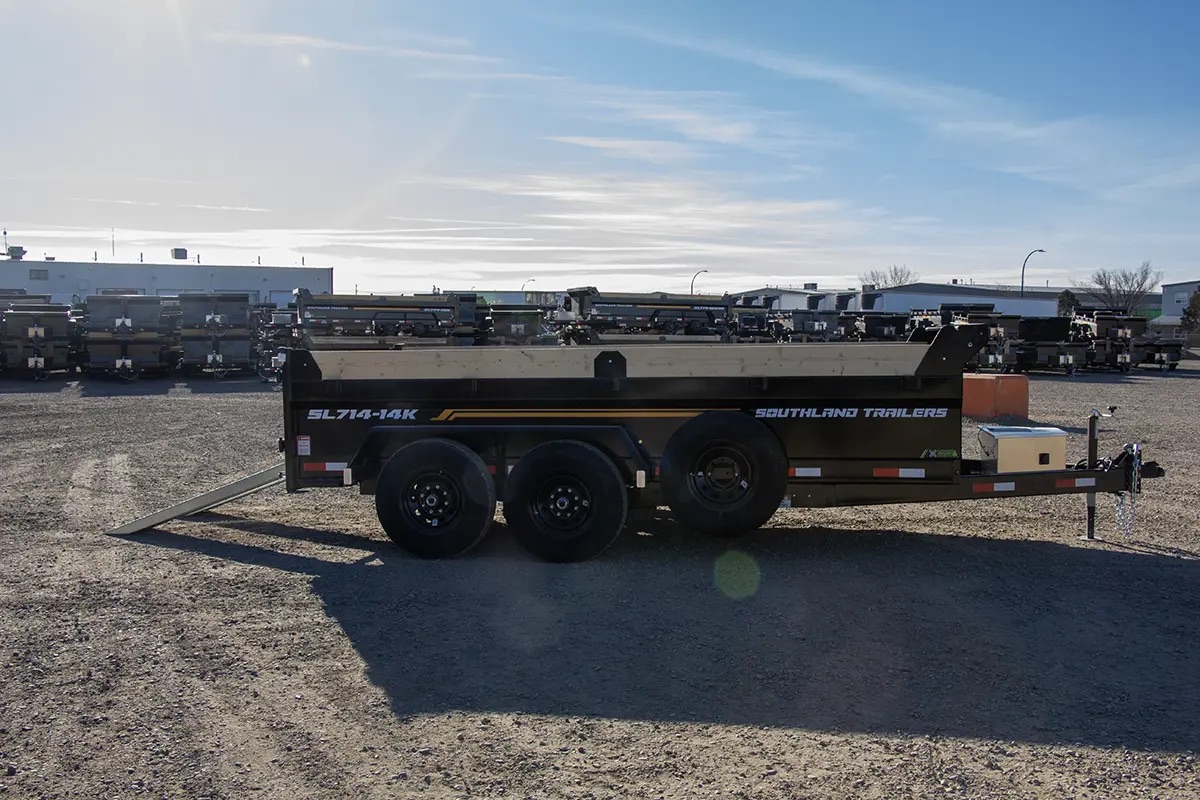

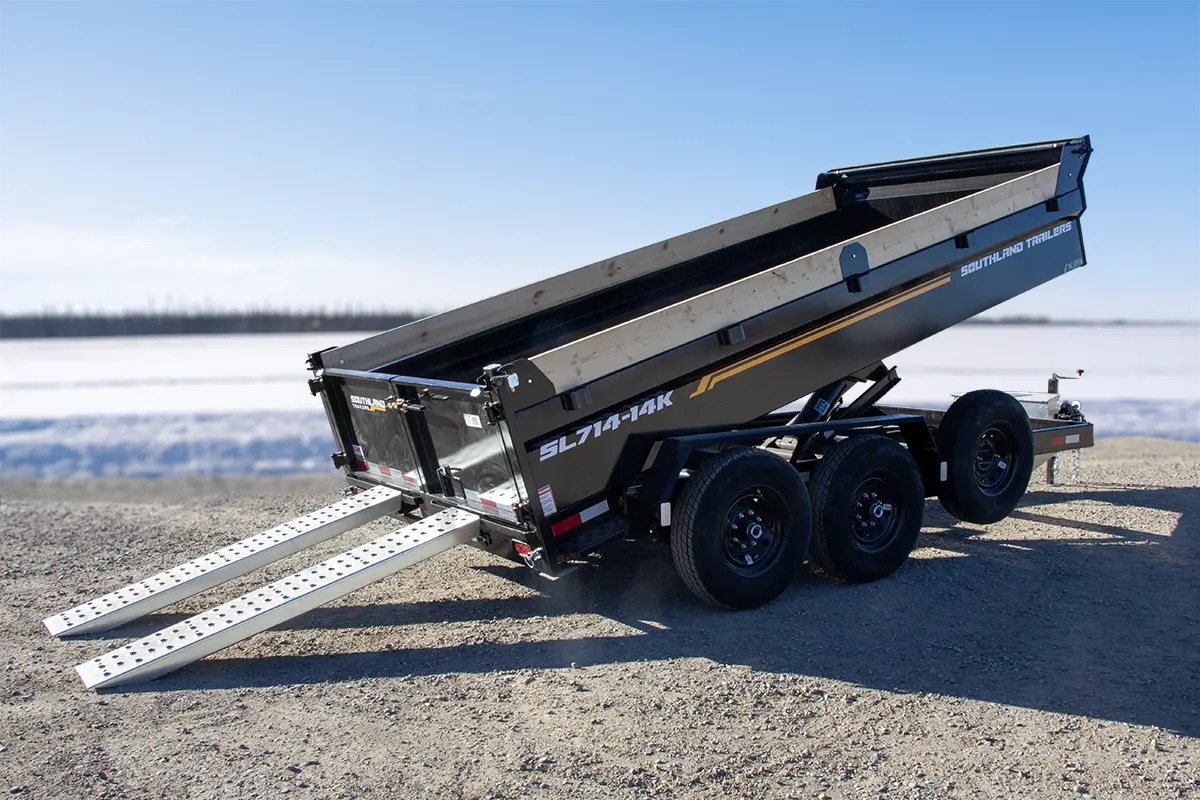

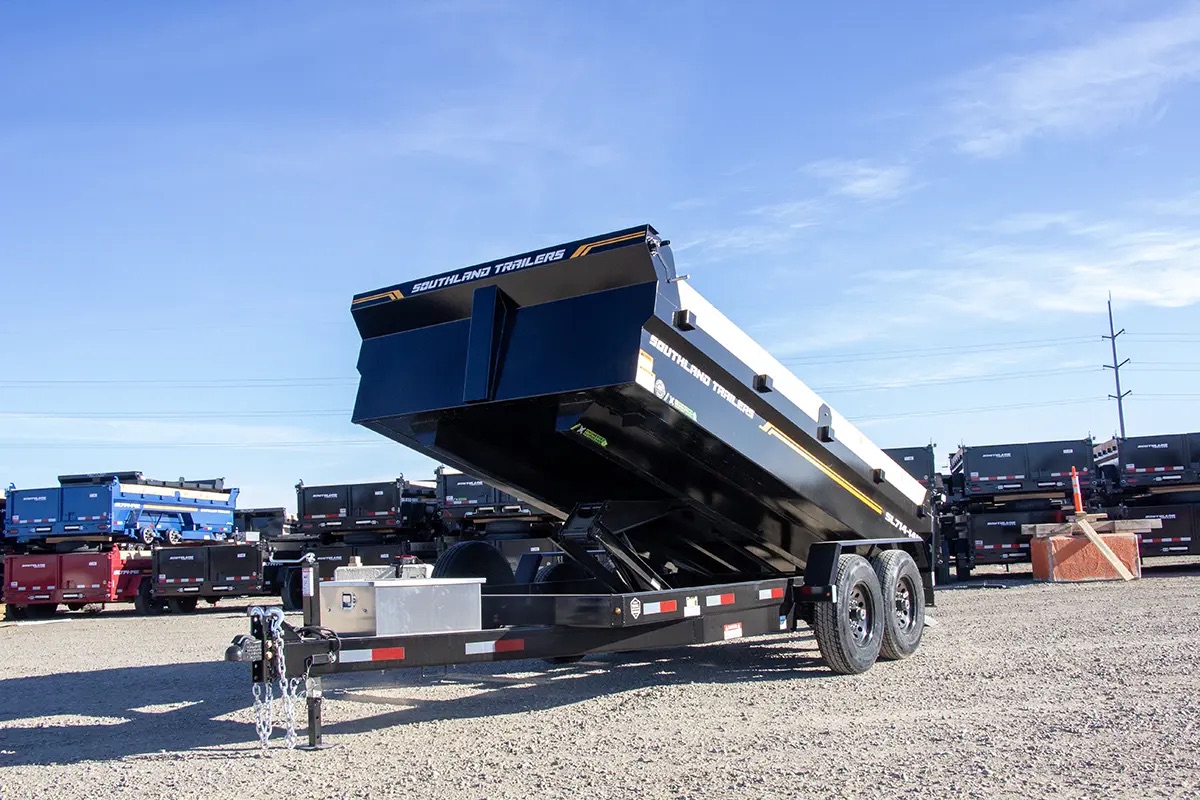

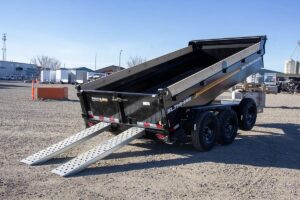

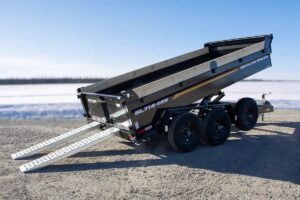

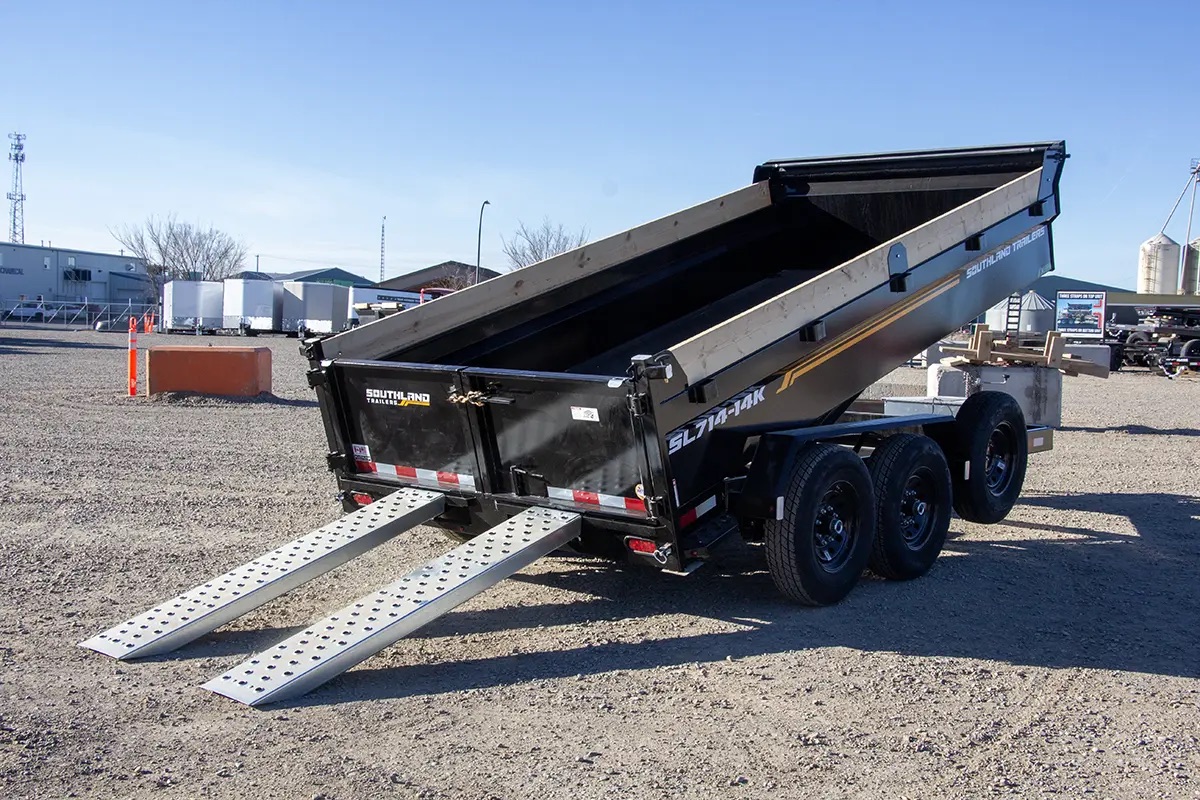

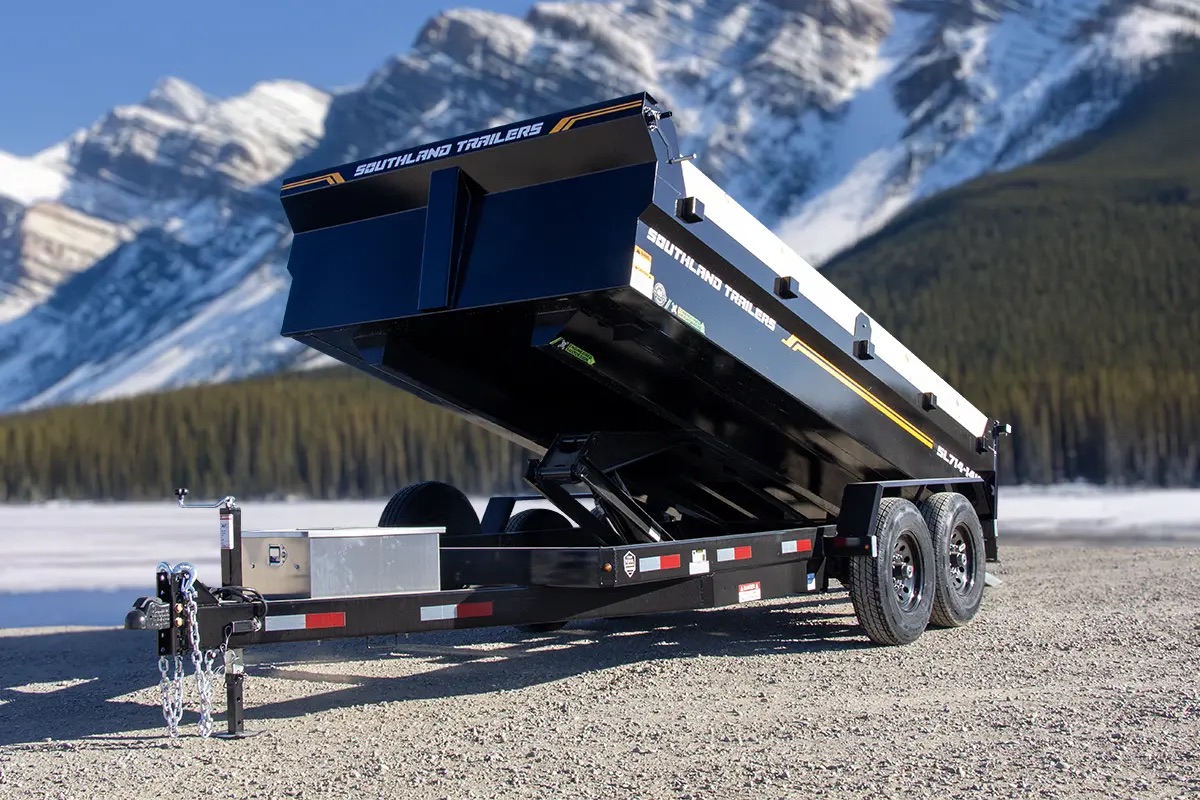

7′ x 14′ Dump Trailer
Build your trailer
Select your configuration below. Specs update automatically.
Axle
Wall Style
Live Specifications
Download PDF
Axle
(2) 7,000 lb. Lippert Spring
Hoist
Scissor Hoist 6” Bore X 15” Stroke 9 Ton
Jack
7,000 lb, Bolted, Top wind, Pull Pin Drop Leg
Ramp
(2) 4,000 lb. Midspan Ramps (65 lbs. each)
Wheels
235/80R16 E Steel
Tailgate
Steel Barn Door w/ Over Centre Latch
Coupler
21,000 lb. Demco Adjustable
Floor & Wall
10ga Floor / 12ga Wall
Frame
6 X 2 HSS
Lights
LED
Electric Plug
Cold Weather 7 Wire RV
Brakes
Electric
Safety Chains
16,200 lb 5/16” w/Clevis Slip Hook
Paint Specs
PPG 2-Part Epoxy DTM
Dump Angle
45°
Rating Set
Standard
Length (ft)
14
Net Weight (lb)
3615
GVWR (lb)
15400
Payload Capacity (lb)
11785

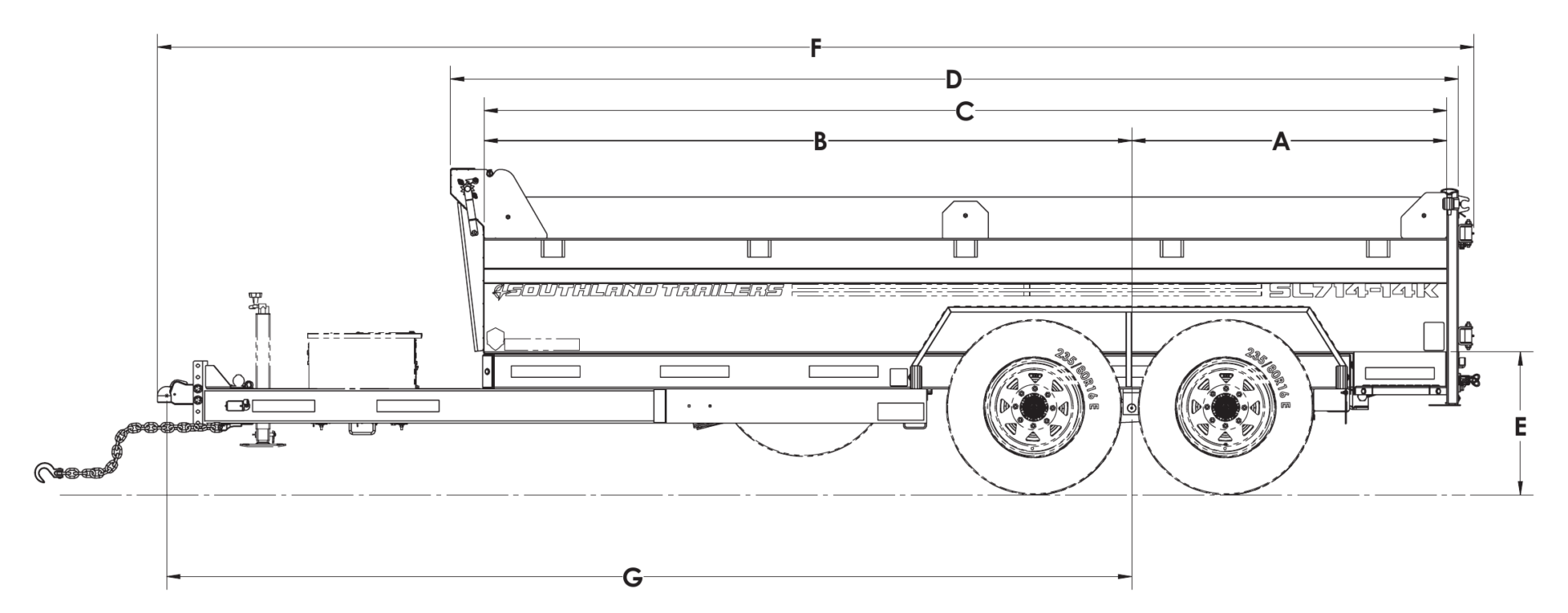

Dimension A
55”
Dimension B
113”
Dimension C
168”
Dimension D
175 7/8”
Dimension E
25”
Dimension F
229 11/16”
Dimension G
168 3/8”
TRAILER FINANCING
Financing options available through participating partners.
Financing Available
View Partnerships & Rates
Interactive Features
Haul More. Not More Trailer.
Strength-to-Weight Ratio
We put strength where the trailer needs it instead of simply adding steel everywhere, helping preserve more of the GVWR for payload.
See the Difference
Keep Electrical Problems Off the Job
Fully Enclosed Wiring
Main wiring is routed inside the HSS frame, helping protect it from road spray, salt, gravel and jobsite debris.
See Our Wiring Design
Built for the Load
Multiple Side Configurations
Different jobs call for different dump bodies. Our lineup includes multiple side-height configurations so you can choose the setup that fits how you actually haul.
Explore Dump Trailers
Protect the Parts That Keep You Working
Heavy-Duty Aluminum Toolbox
The aluminum toolbox keeps key power-system components protected and easy to access without adding the weight or red rust of a steel box.
See the Toolbox
