STRENGTH AND RELIABILITY
Our Flatdeck Equipment Trailers are built tough with HSS tubing frame for maximum frame strength. They resist bending, twisting, and wear — so you can haul heavy loads
safely and reliably, job after job.

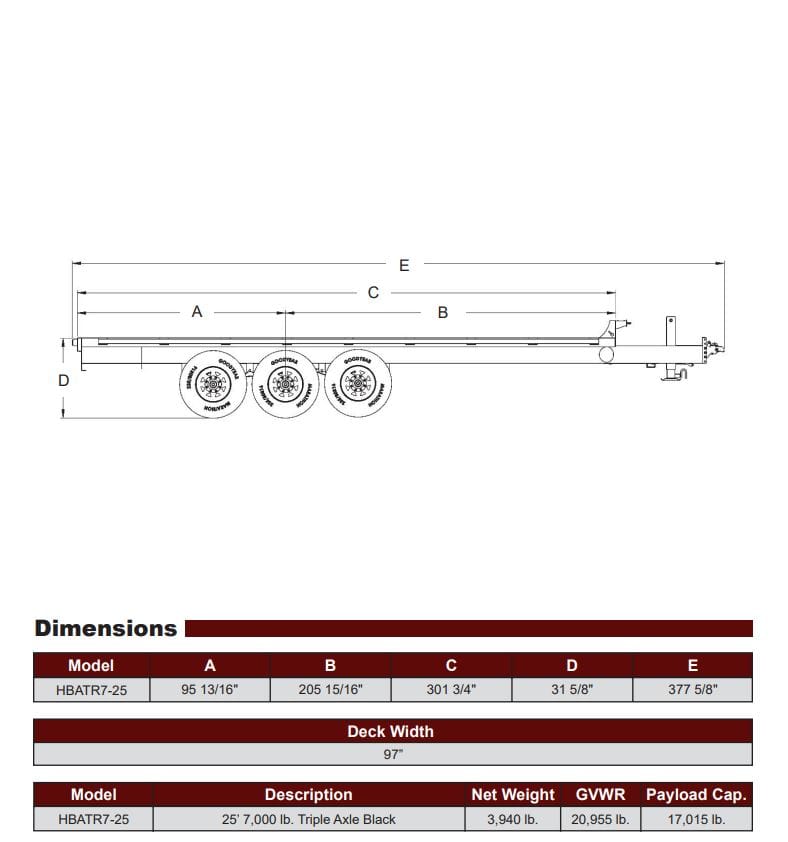

25′ High Boy Triple Axle Flat Deck – Straight Deck
25′ High Boy Triple Axle Flat Deck – Straight Deck
2Video
2Video
| Axle | (3) 7,000 lb. |
| Jack | 12,000 lb. Side Wind Jack Bolted |
| Brakes | Electric Self Adjusting |
| Attachment Style | 2 5/16" |
| Crossmembers | 3" I-Beam 80 KSI |
| Curb Weight (lb.) | 3,940 lb. |

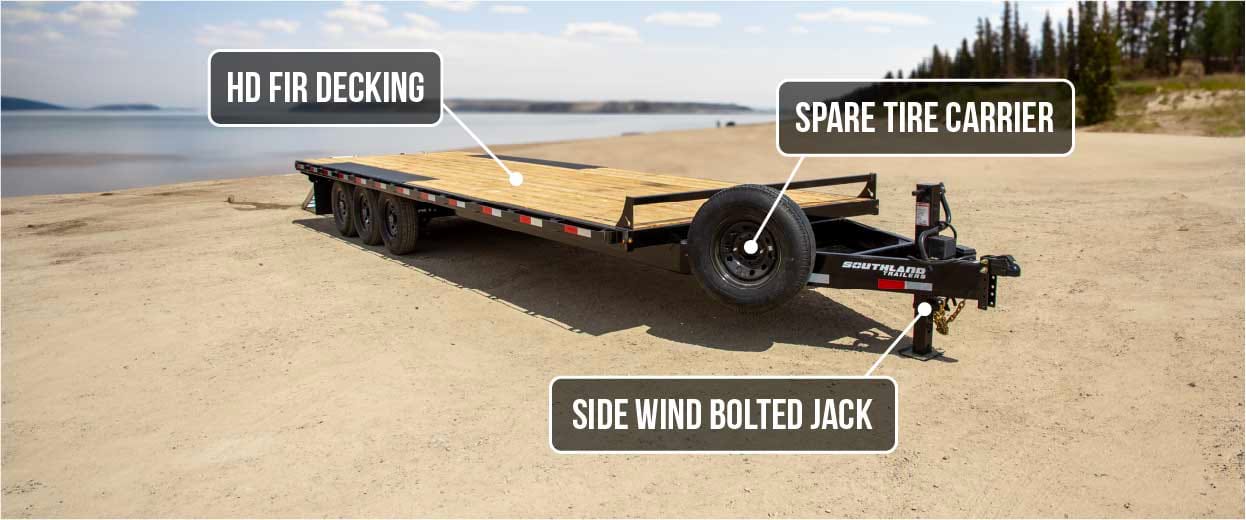

| Deck | HD Fir |
| GVWR (lb.) | 20,955 lb. |
| Payload Capacity (lb.) | 17,015 lb. |

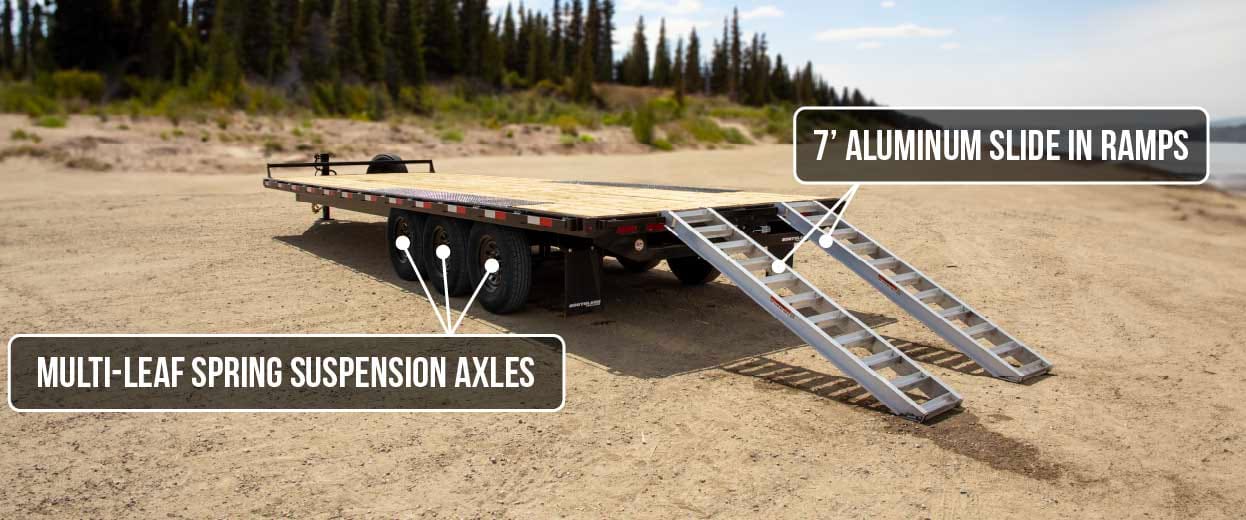

| Suspension | Multi-Leaf Spring |
| Wheels | ST235/80R16 E Steel |
| Coupler | 21,000 lb. Demco Adjustable |
