Commercial Cargo
Build your trailer
Select your configuration below. Specs update automatically.
Width
Axle
Live Specifications
Download PDF
Axle
(2) 5,200 lb. Lippert Spring
Brakes
Electric Self-Adjusting
Coupler
21,000 lb. Demco Adjustable
Jack
5,000 lb. Top-Wind
Side Door
36” x 72” with RV Latch
Floor D-Rings
2,000 lb.
Main Rails
Steel HSS 6.0” x 2.0”
Crossmembers
Steel HSS 2.0” x 2.0”
Floor
3/4” Plywood
Walls
3/8” Plywood
Wheels
225/75R15 D Steel
Electric Plug
7 Wire Plug
Ramp Rating
800 lb. Midspan
Rating Set
Standard | Standard | Standard | Standard
Length (ft)
16 | 16 | 18 | 18
Net Weight (lb)
2697 | 2785 | 2917 | 3005
GVWR (lb)
11440 | 11440 | 11440 | 11440
Payload Capacity (lb)
8743 | 8655 | 8523 | 8435

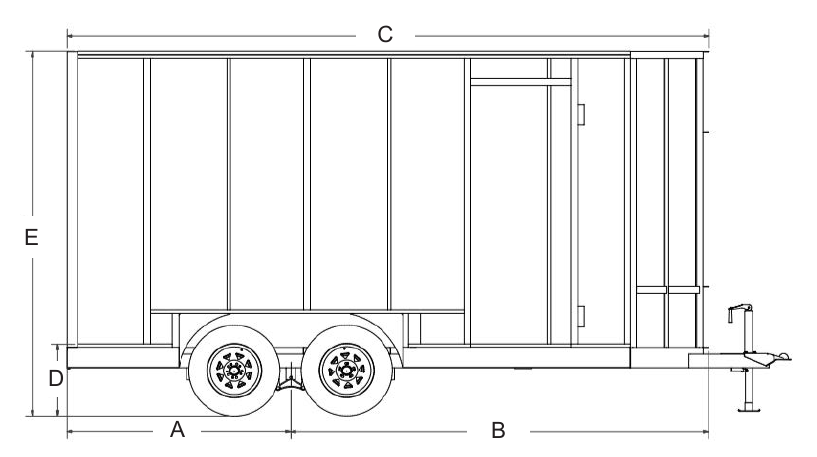

Dimension A
71” | 71” | 71” | 71”
Dimension B
128” | 128” | 145 3/16” | 145 3/16”
Dimension C
199” | 199” | 216 3/16” | 216 3/16”
Dimension D
23 3/4” | 23 3/4” | 23 3/4” | 23 3/4”
Dimension E
104 3/16” | 112 3/16” | 104 3/16” | 112 3/16”
Dimension F
244 11/16” | 244 11/16” | 244 11/16” | 244 11/16”
