Commercial Cargo
Build your trailer
Select your configuration below. Specs update automatically.
Width
Axle Configuration
Live Specifications
Download PDF
Axle
(1) 3,500 lb. Lippert Spring
Brakes
None
Coupler
10,000 lb. Stamped
Jack
2,000 lb. Top-Wind Bolted
Side Door
36”x60”, 66” or 72” with RV Latch
Floor D-Rings
None
Main Rails
Steel HSS 3.0” x 2.0”
Crossmembers
Steel HSS 2.0” x 2.0”
Floor
3/4” Plywood
Walls
3/8” Plywood
Wheels
205/75R14 C Steel
Electric Plug
4 Wire
Ramp Rating
800 lb. Midspan
Rating Set
Standard | Standard | Standard | Standard | Standard
Length (ft)
10 | 12 | 12 | 14 | 14
Net Weight (lb)
1009 | 1075 | 1229 | 1317 | 1381
GVWR (lb)
2900 | 2900 | 2900 | 2900 | 2900
Payload Capacity (lb)
1891 | 1825 | 1671 | 1583 | 1519

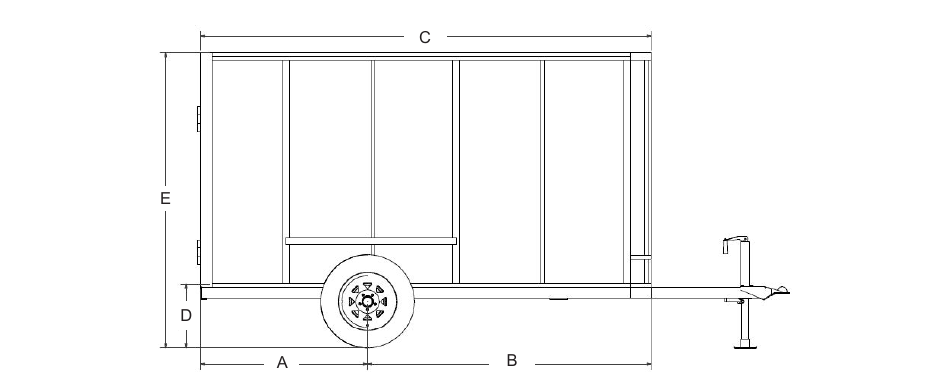

Dimension A
47” | 47” | 57” | 57” | 57”
Dimension B
80” | 98” | 94” | 112” | 112”
Dimension C
127” | 145” | 151” | 169” | 169”
Dimension D
17 5/16” | 17 5/16” | 17 5/16” | 17 5/16” | 17 5/16”
Dimension E
84 5/16” | 84 5/16” | 92 5/16” | 92 5/16” | 98 5/16”
