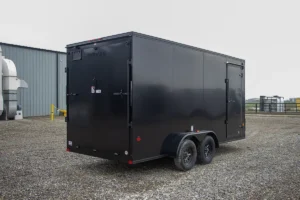

Commercial Cargo
Build your trailer
Select your configuration below. Specs update automatically.
Width
Axle
Live Specifications
Download PDF
Axle
(2) 3,500 lb. Lippert Spring
Brakes
Electric Self-Adjusting
Coupler
21,000 lb. Demco Adjustable
Jack
5,000 lb. Top-Wind
Side Door
36” x 72” with RV Latch
Floor D-Rings
2,000 lb.
Main Rails
Steel HSS 6.0” x 2.0”
Crossmember
Steel HSS 2.0” x 2.0”

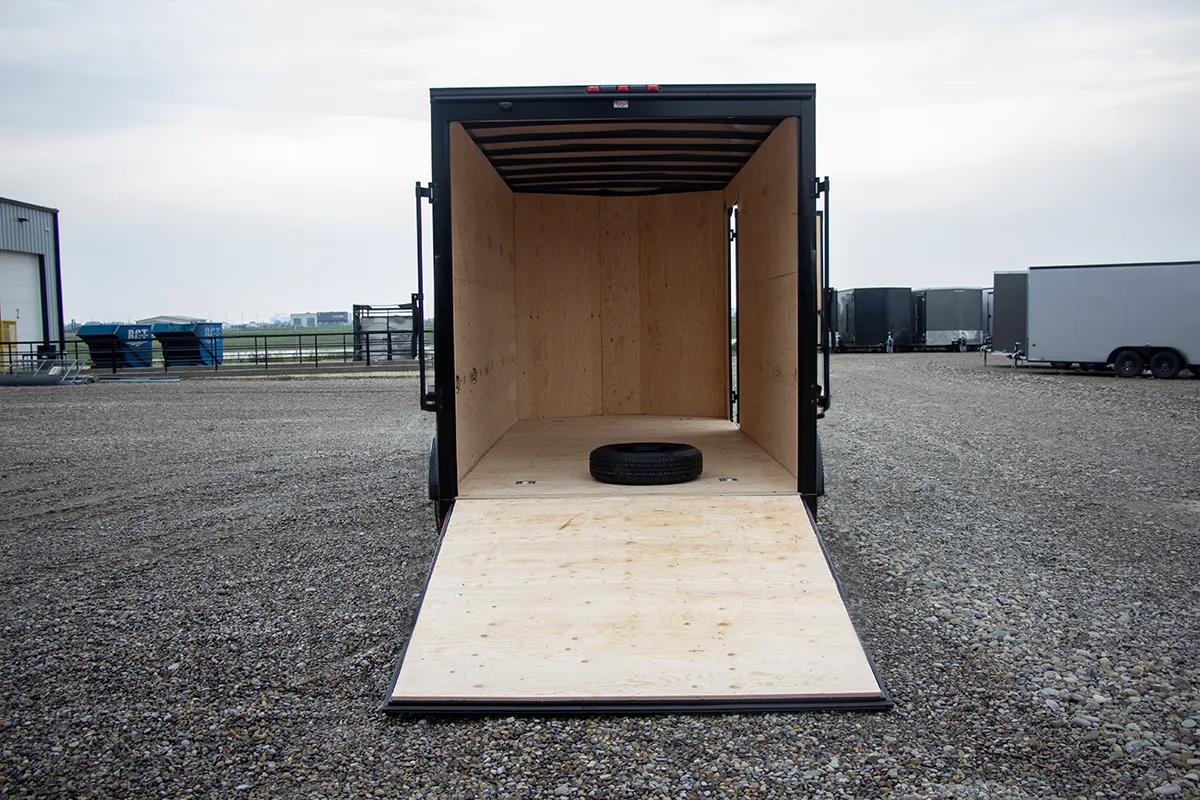

Floor
3/4” Plywood
Walls
3/8” Plywood
Wheels
205/75R15 C Steel
Electric Plug
7 Wire RV

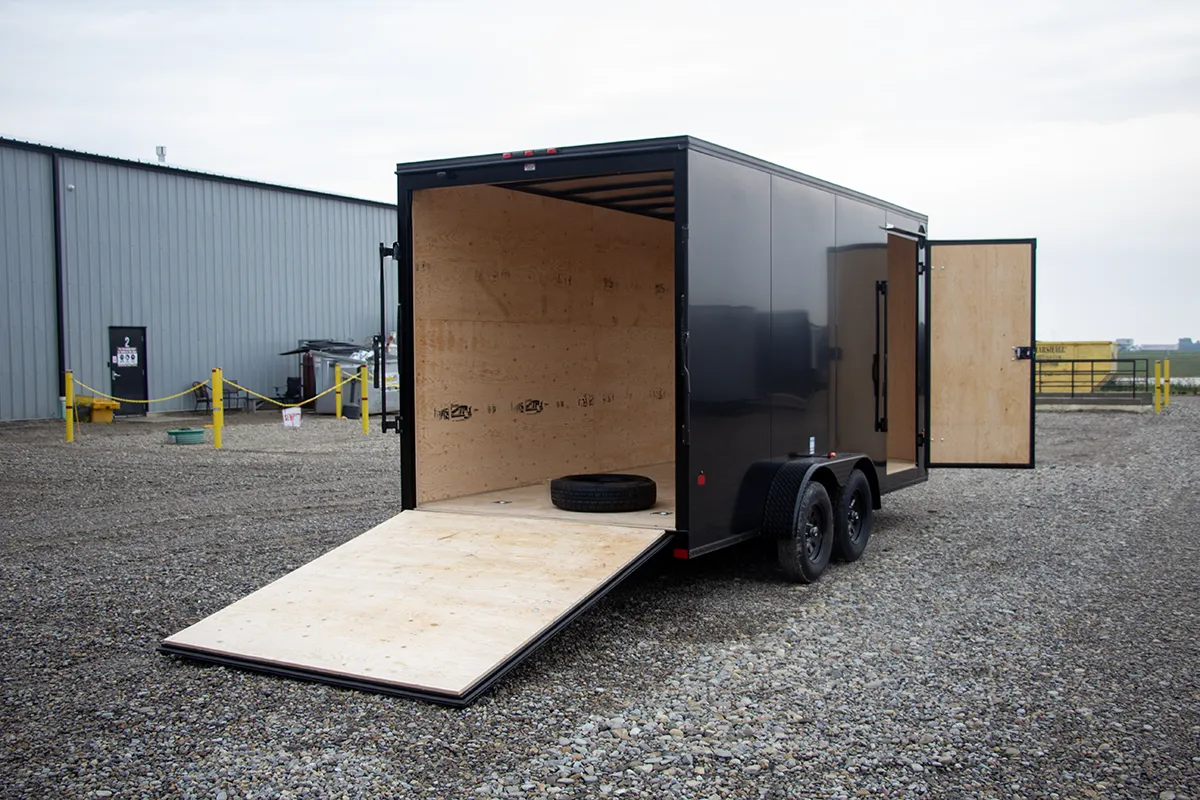

Ramp Rating
800 lb. Midspan
Rating Set
Standard | Standard | Standard | Standard
Length (ft)
16 | 16 | 18 | 18
Net Weight (lb)
2547 | 2635 | 2767 | 2855
GVWR (lb)
7700 | 7700 | 7700 | 7700
Payload Capacity (lb)
5153 | 5065 | 4933 | 4845
Dimension A
71” | 71” | 71” | 71”
Dimension B
128” | 128” | 145 3/16” | 145 3/16”
Dimension C
199” | 199” | 216 3/16” | 216 3/16”
Dimension D
22 1/2” | 22 1/2” | 22 1/2” | 22 1/2”
Dimension E
103” | 111” | 103” | 111”
