XR Toy Hauler
Build your trailer
Select your configuration below. Specs update automatically.
Axle
Deck Type
Live Specifications
Download PDF
Axle
(2) 3,500 lb. Lippert Torsion
Brakes
Electric Self-Adjusting
Coupler
21,000 lb. Demco Adjustable
Jack
5,000 lb. Side-Wind
Side Door
36” x 72” with RV Latch
Floor D-Rings
2,000 lb.
Main Rails
Steel HSS 6.0” x 2.0”
Crossmembers
Steel HSS 2.0” x 2.0”
Floor
3/4” Nudo Poly Floor
Walls
0.023” Aluminum Panel
Electric Plug
7 Wire Plug
Wheels
225/75R15 D Aluminum
Ramp Rating
2,500 lb.
Rating Set
Standard | Standard
Length (ft)
20 | 26
Net Weight (lb)
3183 | 4017
GVWR (lb)
7700 | 7700
Payload Capacity (lb)
4517 | 3683

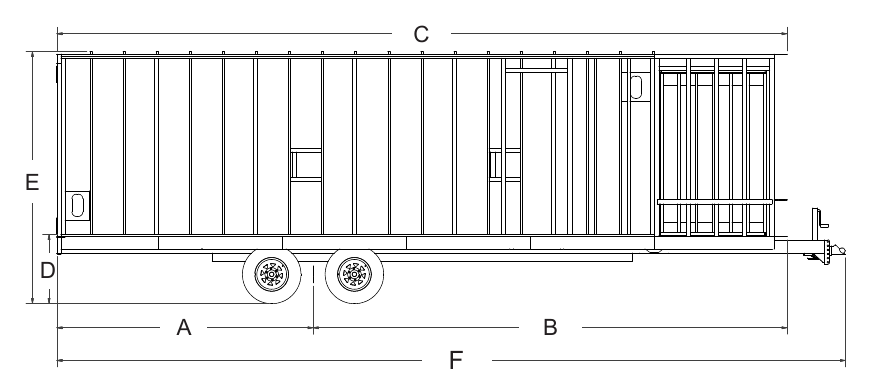

Dimension A
76" | 104"
Dimension B
181" | 225"
Dimension C
257" | 329"
Dimension D
31 5/8" | 31 5/8"
Dimension E
112 1/8" | 112 1/8"
Dimension F
285 5/16" | 357 5/16"
3-Year Warranty
Structural integrity guaranteed.
