Technical Specs
Get the full breakdown of dimensions and capacities.

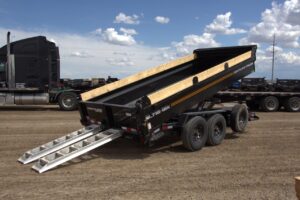

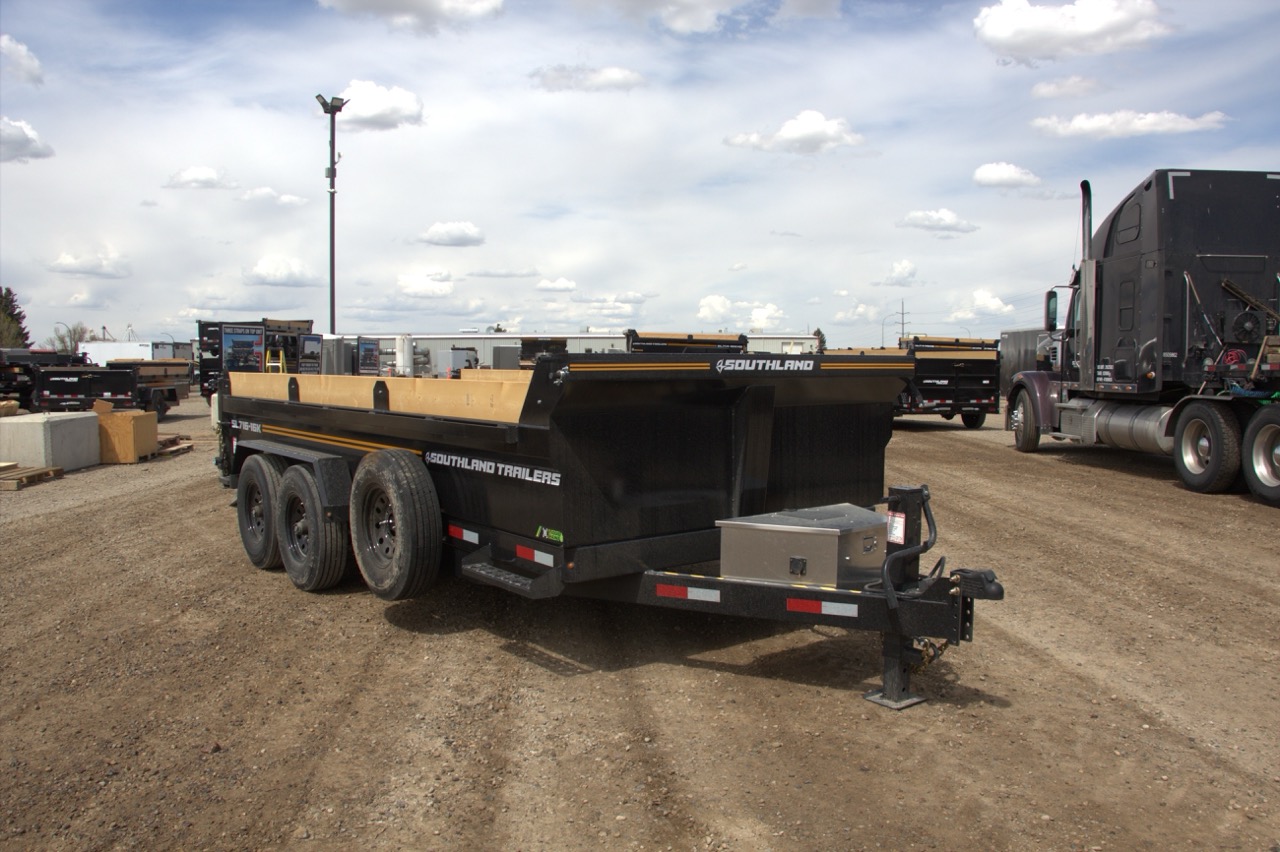

7′ x 16′ Dump Trailer
Build your trailer
Select your configuration below. Specs update automatically.
Axle
Package
Live Specifications
Download PDF
Axle
(2) 8,000 lb Lippert Spring
Hoist
Scissor Hoist 6” Bore X 20” Stroke 14 Ton
Jack
7,000 lb, Bolted, Top wind, Pull Pin Drop Leg

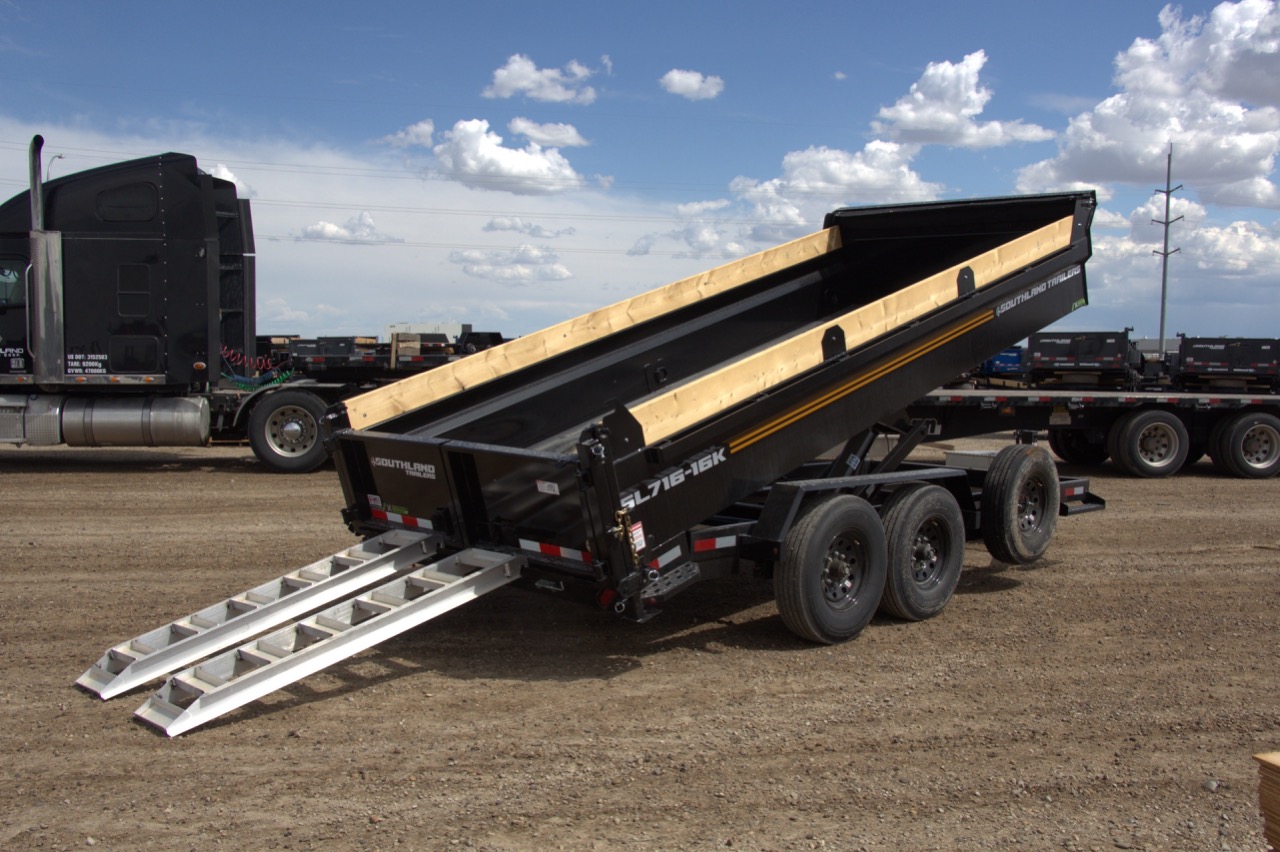

Ramp
(2) Aluminum 4,500 lb Midspan Ramps (34 lbs Each)
Wheels
235/85R16 F Steel
Tailgate
Steel 3-Way Barn/Spreader
Coupler
21,000 lb Demco Adjustable
Floor & Wall
10ga Floor / 10ga Wall
Frame
6 X 2 HSS
Lights
L.E.D. DOT Stop, Tail, Turn & Clearance
Electric Plug
Cold Weather 7 Wire RV Plug
Safety Chains
16,200 lb 5/16” w/Clevis Slip Hook
Paint Specs
PPG 2-Part Epoxy DTM

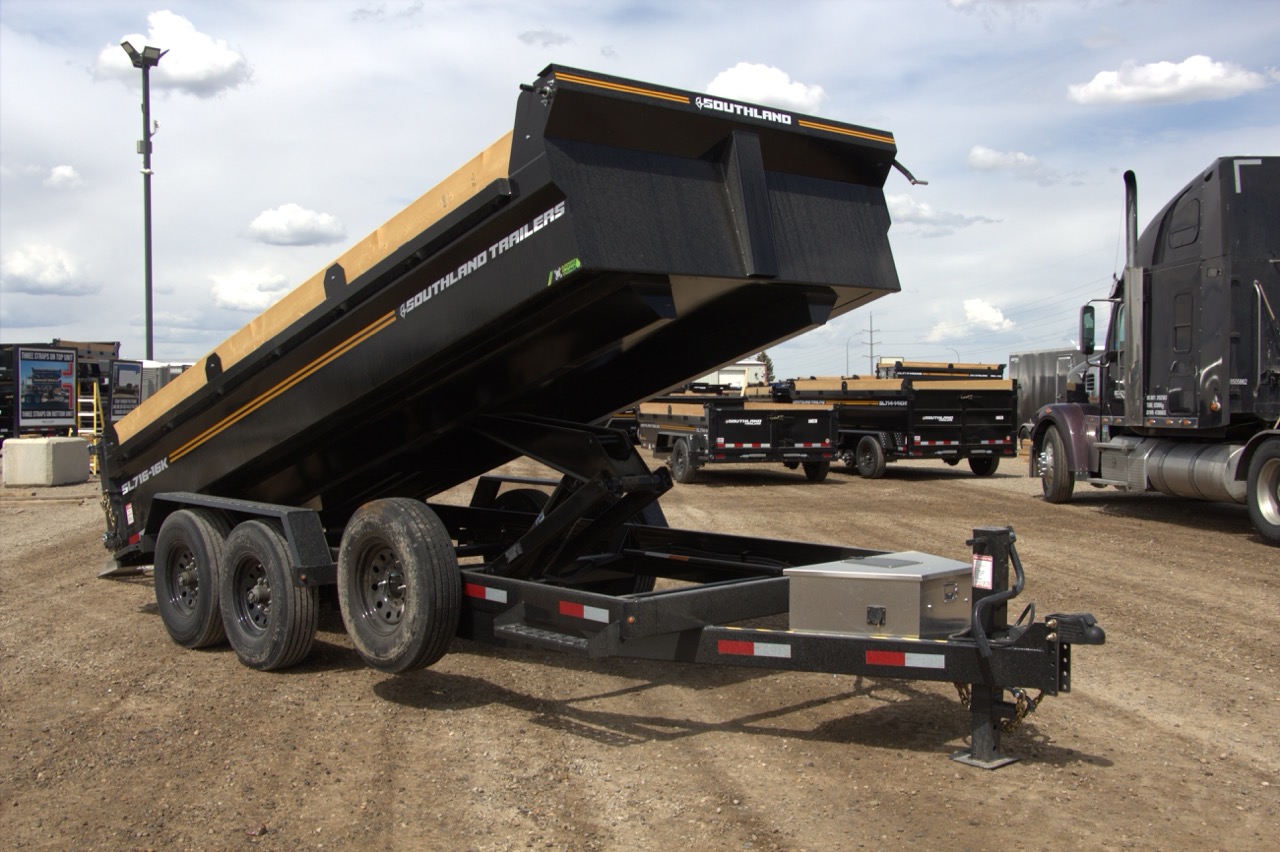

Dump Angle
50°
Rating Set
Standard
Length (ft)
16
Net Weight (lb)
4563
GVWR (lb)
17420
Payload Capacity (lb)
12857

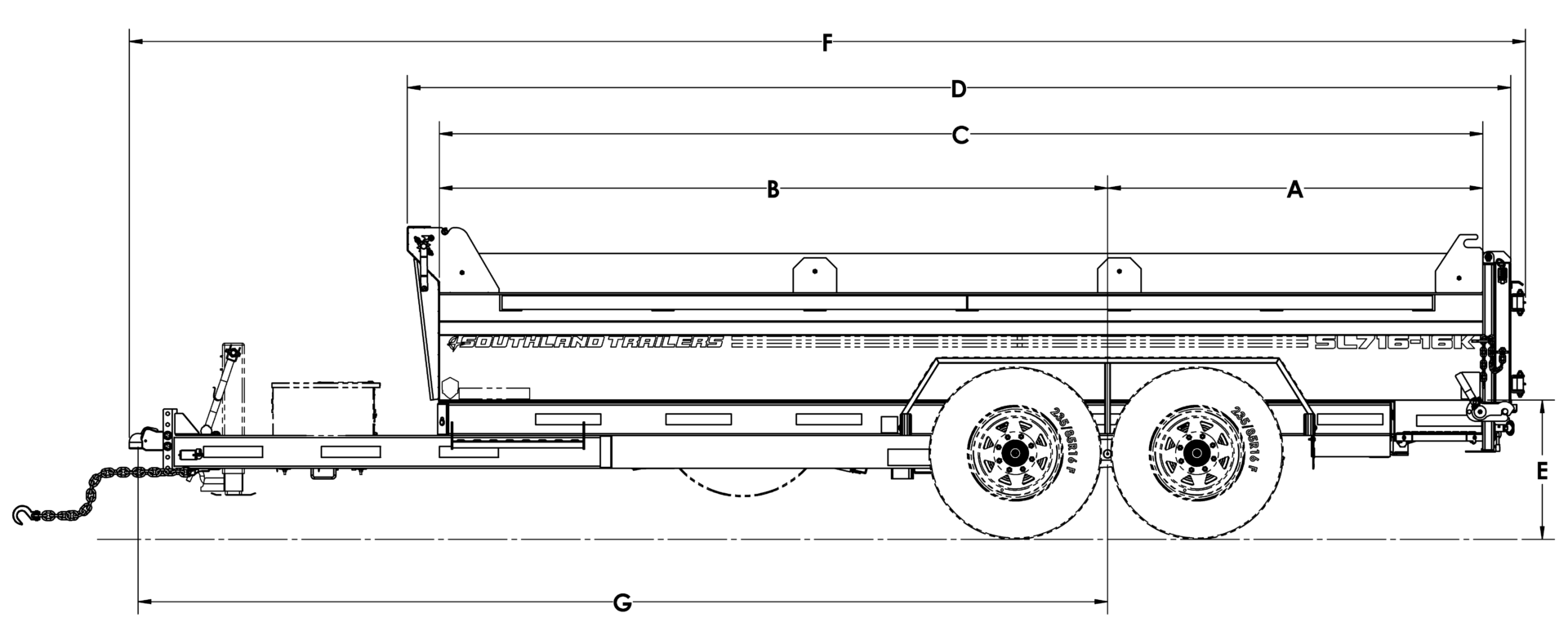

Dimension A
69”
Dimension B
123”
Dimension C
192”
Dimension D
203”
Dimension E
25 5/8”
Dimension F
256 7/8”
Dimension G
178 3/8”
