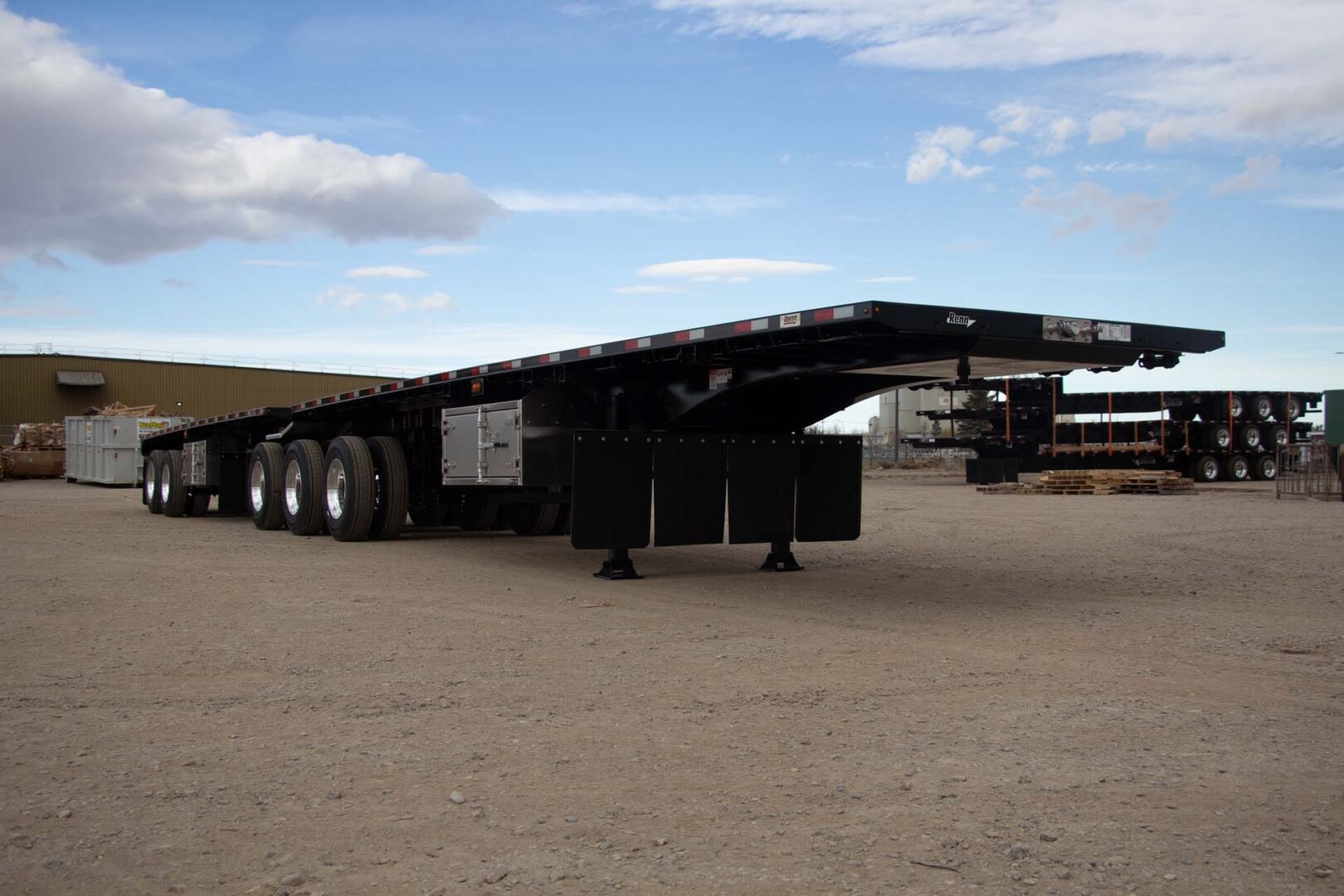

Super B Trailer

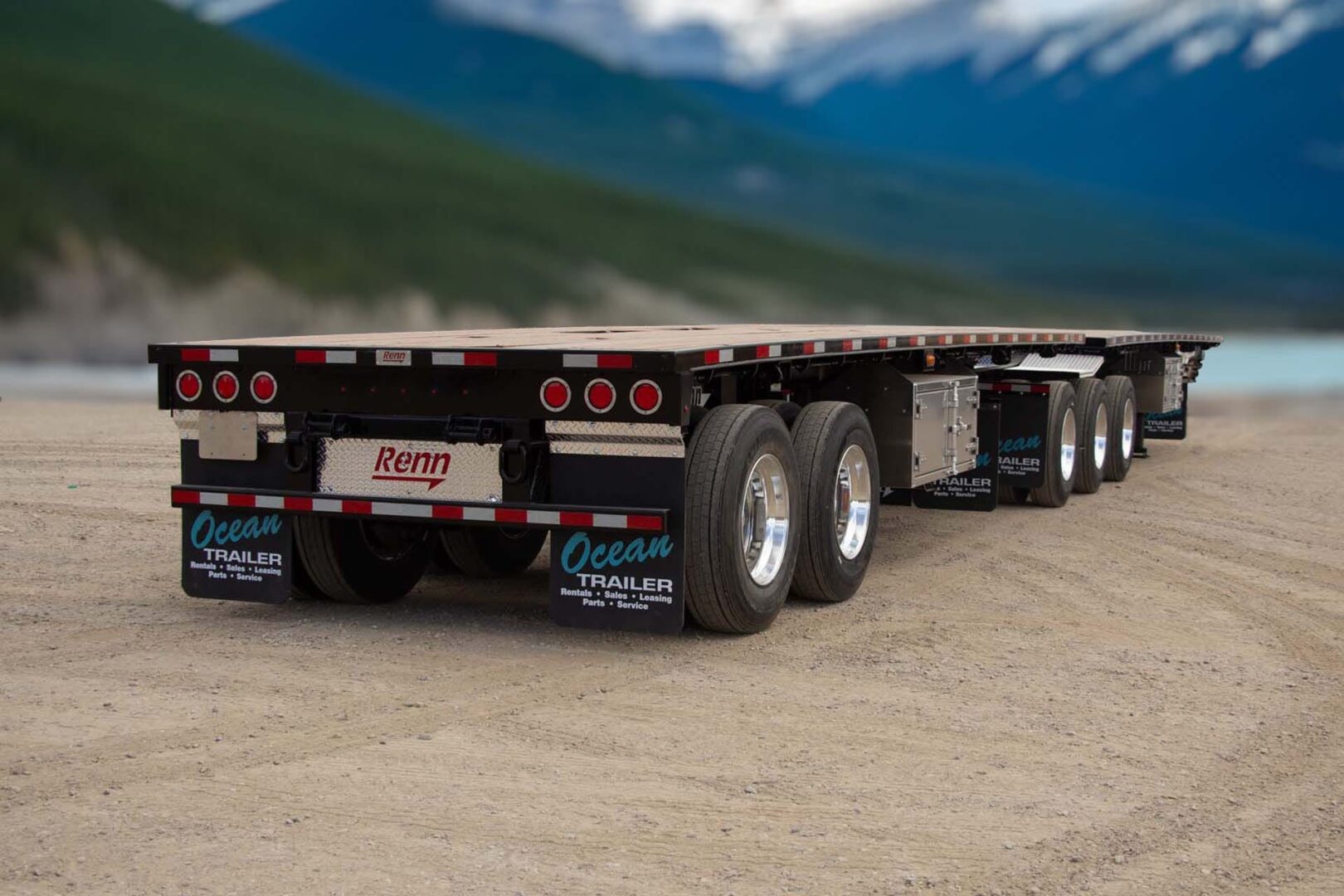

Super B Trailer
Super B Trailer
Super B Trailer
IMG_8632-front
FullSizeRender2
superb
superb2-1
superb3-1
superb4-1
superb5
superb6
superb7-1
IMG_4314-EDITED-scaled-1
IMG_4312-EDITED-scaled-1
IMG_4311-EDITED-scaled-1
IMG_4309-EDITED-scaled-1
IMG_4304-EDITED-scaled-1
IMG_4303-EDITED-scaled-1
Super B Trailer
Super B Trailer
Super B Trailer
Super B Trailer
IMG_8632-front
FullSizeRender2
superb
superb2-1
superb3-1
superb4-1
superb5
superb6
superb7-1
IMG_4314-EDITED-scaled-1
IMG_4312-EDITED-scaled-1
IMG_4311-EDITED-scaled-1
IMG_4309-EDITED-scaled-1
IMG_4304-EDITED-scaled-1
IMG_4303-EDITED-scaled-1
Super B Line Drawing

Live Specifications

Download PDF
Main Beams One-Piece Seamless Web 3/16”GR90 KSI HTS, Flange GR130 KSI 5” x 3/8” HTS, Robotically Welded. 2.5” Camber
Main Deck Frame 3.5” Square Tubing Side Rails w/ Integrated Stake Pockets at 48” Centers, 4” Superlite IBeam Crossmembers on 16” Centers, Fully Welded 1/4” Round Rub Rail, Tube Style Knee Braces, Formed Front Bolster with Bolted Aluminum Inspection Plate, 3.5” Square Tubing Rear Bolster
Coupler Assembly 3/8” Plate Reinforced with Support Channels and Inner Web Repads, SAF Holland King Pin with Depth Set at 30/19”, Various Pin Depth and Plate Thickness Options Available
Cargo Securement 3 Bar Winches w/Opposite J-Hooks, HD Tarp Hooks. Custom Winch and Stake Pocket Layout Options Available
Decking 8” x 1-5/16 BC Douglas FIR Shiplap, Exterior Wood Stained for Longevity
Suspension Hendrickson AAL23K INTRAAX Air Ride 8” Ride Height. Options Available
Axles Hendrickson AANT23K INTRAAX, Lift Axle and Tire Inflation Options Available
Wheelends/Brakes Standard 10 Stud Piloted Ductile Iron Hub, Extended Life HXL5, Haldex Auto Slack Adjusters, HXS TSE 30/30 Spring Brake Pots. Cast Drum, Federal Mogul Seals. Disc Brake, Hubmeter and Lightweight Hub and Drum Options Available.
ABS Bendix TABS-6 ABS (2 Sensors/1 Modulator), Transport Canada Compliant
Coating All Components Steel Shot Blasted, PPG Zinc Rich Epoxy Primer Inside and Out, Top Coat PPG Urethane, All Painted Parts Baked in Heat Ovens, Standard Black. Various Colors Available.
Wiring/Lighting HD Sealed Grote Wiring Harness with LED lighting, Wide Load Pull Out and Rear Rear Strobe Lights Options Available.
Air System Standard Steel Air tanks, Inline Air Filter System, Manual Air Bag Dump Valve
Landing Gear 62,500 lb Dual Speed SAF Holland Mark V with Sand Shoe, Heavy Duty Bracing
Tires Cooper Roadmaster. Options Available
Rims Steel and Aluminum, Various Finish Options Available
Toolbox/Storage Aluminum Box with Barn Doors 24”H x 23”D x 60L with Cam Style Latch and Grote LED Interior Light. Various Dunnage Box, Rack and Basket Options Available. Optional Chain Hanger
Mudflaps 30” Poly Anti-Spray Renn Logo’d Mudflaps. Options Available
Tow Point D-Rings Mounted at Rear, Pup Only
Lift Lugs Balanced Lift Points on Rear Deck for Stacking Purposes
Reflective Conspicuity 2” Red and White
Document Holder Tube Style
Control Box Sealed Aluminum Box with Sight Window, Liquid Load Gauge and Manual Air Bag Dump Valve
Bumper Certified Rear Impact Guard, Meets CMVSS
Data Meets or Exceeds all Canadian Motor Vehicle Safety Standards
GVWR 41,000 / 31,500 kg (lead / rear)
Distributed 60,000 / 60,000 lb (lead / rear)
20' Concentrated 45,000 / 45,000 lb
10' Concentrated 37,500 / 37,500 lb
4' Concentrated 30,000 / 30,000 lb
Tare 11,400 / 8,400 lb (lead / rear)
Deck Length 32' lead / 28' rear
Outside Width 102"
Rear Loaded Deck Height L54 15/16" / R49 7/8"
King Pin Plate Height L48 5/8" / R47 3/16"
Rating Set Standard
