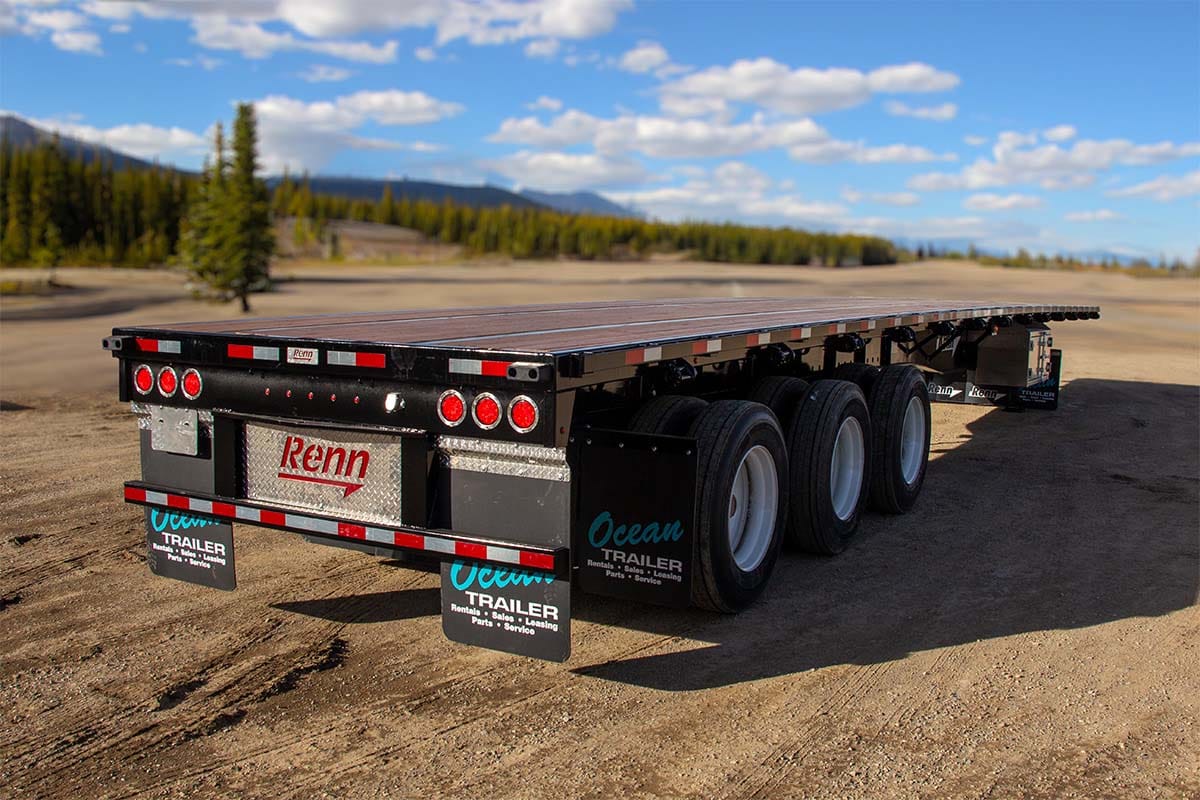

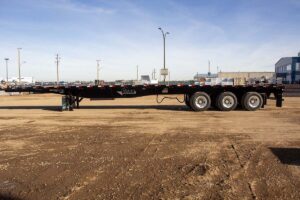

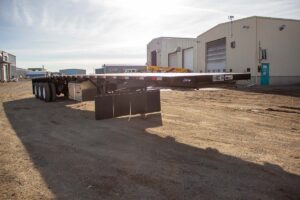

Flat Deck
Build your trailer
Select your configuration below. Specs update automatically.
Live Specifications
Download PDF
Main Beams
One-Piece Seamless Web 3/16”GR90 KSI HTS, Robotically Welded Flange GR130 KSI 5” x 3/8” & 1/2” HTS, 3.25” Camber
Main Deck Frame
6 3/16” Formed Side Rails, 4” Superlite I-Beam Crossmembers on 16” Centers, 2-1/2” x 3/8” Continuous Rub Rail, Stake Pockets @ 24” Centers, Tube Style Knee Braces, Formed Front Bolster with 4 Integrated Stake Pockets and Bolted Aluminum Inspection Plate, Formed Rear Bolster with 5 Integrated Stake Pockets
Coupler Assembly
3/8” Plate Reinforced with Support Channels and Inner Web Repads, SAF Holland King Pin with Depth Set at 24”, Various Pin Depth and Plate Thickness Options Available
Cargo Securement
3 Bar Winches w/Opposite J-Hooks, Pipe Spools Between Stake Pockets, HD Tarp Hooks. Custom Winch, Pipe Spool and Stake Pocket Layout Options Available
Decking
8” x 1-5/16 BC Douglas FIR Shiplap, Exterior Wood Stained for Longevity
Suspension
Sliding Hendrickson AAT23K INTRAAX Air Ride 17” Ride Height. Options Available
Axles
Hendrickson AAT23K INTRAAX, Lift Axle and Tire Inflation Options Available
Wheelends/Brakes
Standard 10 Stud Piloted Ductile Iron Hub, Extended Life HXL5, Haldex Auto Slack Adjusters, HXS TSE 30/30 Spring Brake Pots. Cast Drum, Federal Mogul Seals. Disc Brake, Hubmeter and Lightweight Hub and Drum Options Available.
ABS
Bendix TABS-6 ABS (2 Sensors/1 Modulator), Transport Canada Compliant
Coating
All Components Steel Shot Blasted, PPG Zinc Rich Epoxy Primer Inside and Out, Top Coat PPG Urethane, All Painted Parts Baked in Heat Ovens, Standard Black. Various Colors Available.
Wiring/Lighting
HD Sealed Grote Wiring Harness with LED lighting, Wide Load Pull Out and Rear Rear Strobe Lights Options Available.
Air System
Standard Steel Air tanks, Inline Air Filter System, Manual Air Bag Dump Valve
Landing Gear
62,500 lb Dual Speed SAF Holland Mark V with Sand Shoe, Heavy Duty Bracing
Tires
Cooper Roadmaster. Options Available
Rims
Steel and Aluminum, Various Finish Options Available
Toolbox/Storage
Aluminum Box with Barn Doors 24”H x 23”D x 60”L with Cam Style Latch and Grote LED Interior Light. Various Dunnage Box, Rack and Basket Options Available. Optional Chain Hanger
Mudflaps
30” Poly Anti-Spray Renn Logo’d Mudflaps. Options Available
Tow Point
Plate with Hole, Mounted at Rear
Dock Bumper
2 – Mounted at Rear
Reflective Conspicuity
2” Red and White
Document Holder
Tube Style
Control Box
Sealed Aluminum Box with Sight Window, Liquid Load Gauge and Manual Air Bag Dump Valve
Bumper
Certified Rear Impact Guard, Meets CMVSS
Data
Meets or Exceeds all Canadian Motor Vehicle Safety Standards
GVWR
38,500 kg
Distributed
70,000 lb
20' Concentrated
60,000 lb
10' Concentrated
51,000 lb
4' Concentrated
45,000 lb
Tare
14,990 lb

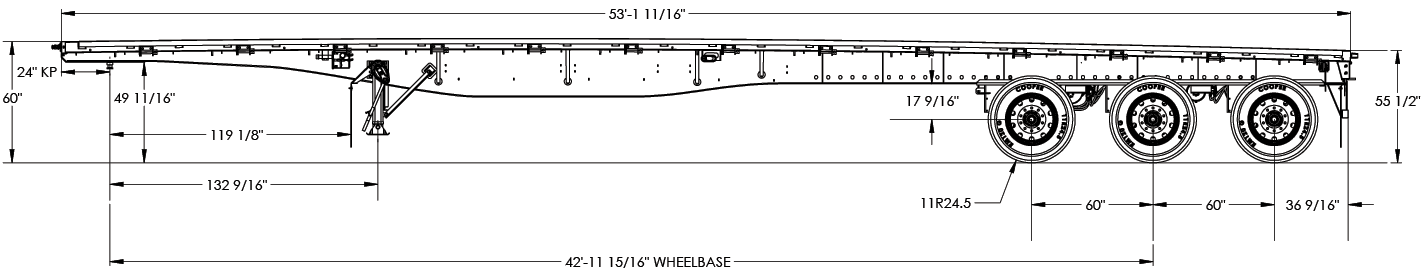

Deck Length
53'
Outside Width
102"
Rear Loaded Deck Height
54"
King Pin Plate Height
TBC
Rating Set
Standard
Length (ft)
53
Net Weight (lb)
14990
3-Year Warranty
Structural integrity guaranteed.
