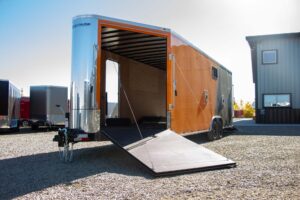

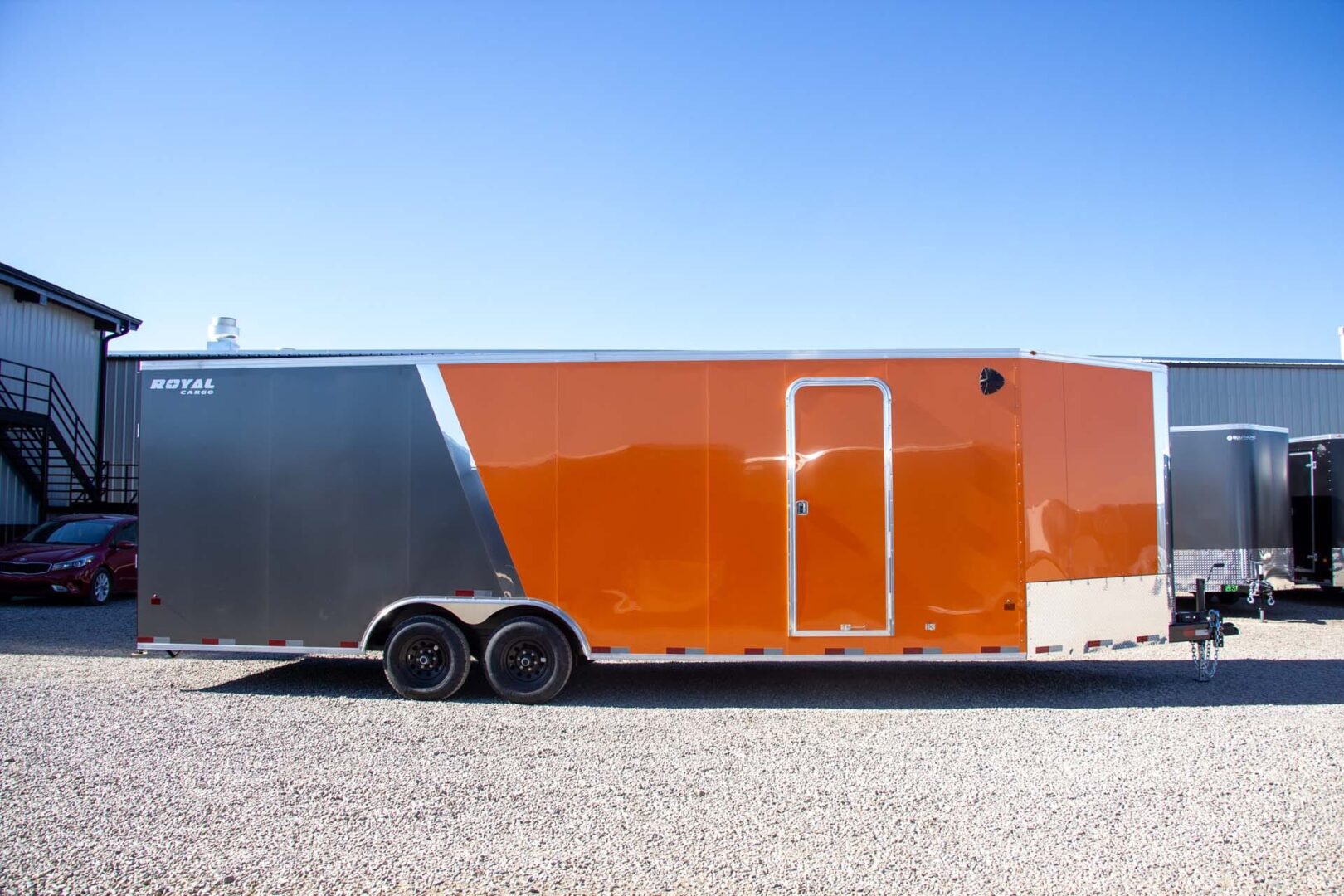

LT Toy Hauler
Build your trailer
Select your configuration below. Specs update automatically.
Axle
Deck Type
Live Specifications
Download PDF
Axle
(2) 5,200 lb. Lippert Spring
Brakes
Electric Self-Adjusting
Coupler
21,000 lb. Demco Adjustable
Jack
5,000 lb. Side-Wind
Side Door
36” x 72” with RV Latch
Floor D-Rings
2,000 lb.
Main Rails
Steel HSS 6.0” x 2.0”
Crossmembers
Steel HSS 2.0” x 2.0”
Floor
3/4” Nudo Poly Floor
Walls
3/8” Plywood
Electric Plug
7 Wire Plug
Wheels
225/75R15 D Steel
Ramp Rating
2,500 lb. Midspan
Rating Set
Standard | Standard
Length (ft)
26 | 26
Net Weight (lb)
3513 | 3623
GVWR (lb)
11440 | 11440
Payload Capacity (lb)
7927 | 7817

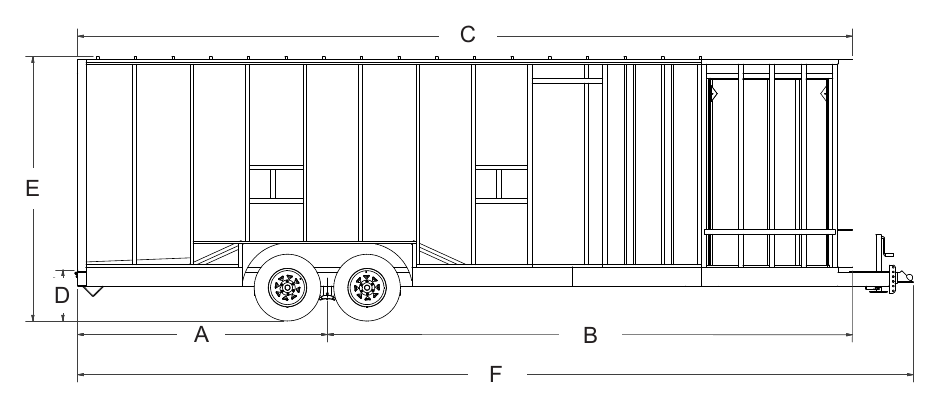

Dimension A
106" | 106"
Dimension B
223" | 223"
Dimension C
329" | 329"
Dimension D
21 11/16" | 21 11/16"
Dimension E
104 3/32" | 104 3/32"
Dimension F
354 29/32" | 354 29/32"
