Gravel Pups
Build your trailer
Select your configuration below. Specs update automatically.
Wall Type
Live Specifications
Download PDF
Chassis
One-Piece 5 3/4” x 10 5/16” HTS IBeam
Box
Conventional Double Wall with 12 Gauge HTS Plate Inner Walls, 12 Gauge Formed HTS Outer Walls, Floor 3/16” AR200 formed up each side, 42” Flat Front 3/16” HTS, Full Length 12 Gauge Fender Skirts, Gate: Inner 3/16” HTS plate, Outer 12 Gauge HTS, Formed Cross Ribs, Straight Gate w/Air Trip, and Spreader Chains, 12” Painted Wood Side Boards. .157, .188 and .250 Hardox 450 Options Available.
Pintle Eye
SAF Holland Swivel Mount Drawbar
Tarp
Michel’s Dura-Flip Mesh with Hydra Chain Drive Crank, Electric Option Available, Various Tarp Options Available
Hoist
Mailhot Telescoping G3 Series
Suspension
SAF Holland CBX 23,000 lb. Integrated Axle with Air Ride Suspension. Spring Ride Options Available
Axles
SAF Holland CBX 23,000 lb. Integrated Axle with Air Ride Suspension. Options Available
Wheelends/Brakes
Webb Standard 10 Stud Piloted Ductile Iron Hub, SC5 Warranty, Haldex Auto Slack Adjusters, 30/30 Spring Brake Pots. Webb Cast Drum, SAF Holland Seals. Disc Brake, Hubmeter and Lightweight Hub and Drum Options Available.
ABS
Bendix TABS-6 ABS (2 Sensors/1 Modulator), Transport Canada Compliant
Coating
All Components Steel Shot Blasted, PPG Epoxy Primer, Top Coat PPG Urethane, Various Colors Available.
Wiring/Lighting
HD Sealed Wiring Harness with LED lighting.
Air System
Standard Steel Air tanks, Inline Air Filter System, Automatic Air Bag Dump Valve
Jack
12,000 lb. Ram Sidewind Spring Lift/Drop
Tires
16Ply Mixed Service All Position. Options Available
Rims
Unimount Hub Piloted 10 Hole Steel and Aluminum. Various Finish Options Available
Mudflaps
30” Poly Anti-Spray/Sail Renn Logo’d Mudflaps at Front and Rear. Options Available
Protection
Optional Front Wall Aluminum Diamond Plate Rock Guard
Ladder
2 Welded Rungs at the Rear of the Box
Reflective Conspicuity
2” Red and White
Document Holder
Tube Style
Containment Seal and Latches
Optional
High Lift Gate
Optional
Remote Tarp Control
Optional
Data
Meets or Exceeds all Canadian Motor Vehicle Safety Standards
GVWR
21,000 kg
Capacity
15.76 Cubic Yards
Tare
5,776 kg

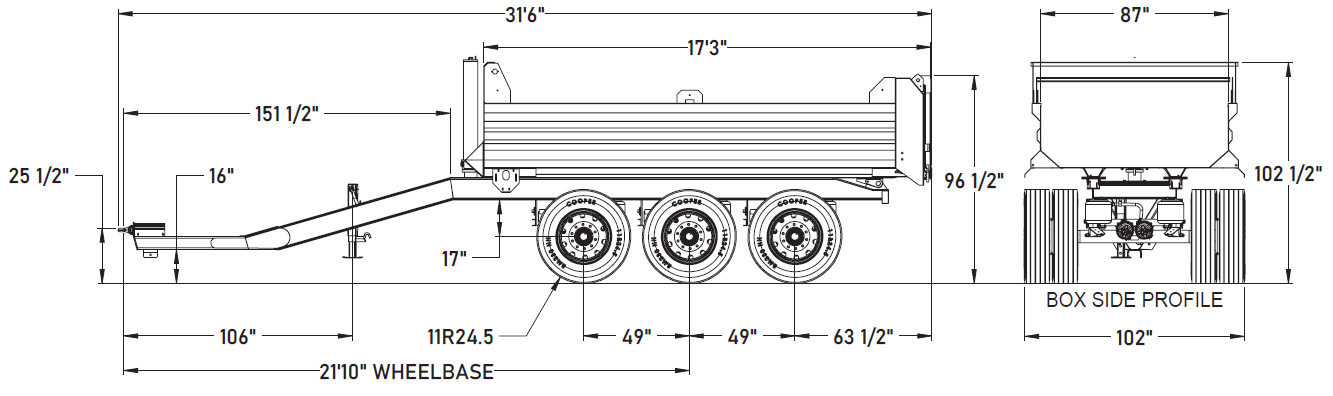

Box Length
17' 3"
Outside Width
8' 6"
Overall Length
31' 6"
Overall Height
102 1/2"
Wall Height
30"
Tip Height
240"
Rating Set
Standard
3-Year Warranty
Structural integrity guaranteed.
