Gooseneck Flatbed

Build your trailer

Select your configuration below. Specs update automatically.

Axle
10K 12K 16K
Axle Configuration
Tandem Axle Tridem Axle
Deck Type
Beavertail Hydraulic Beavertail

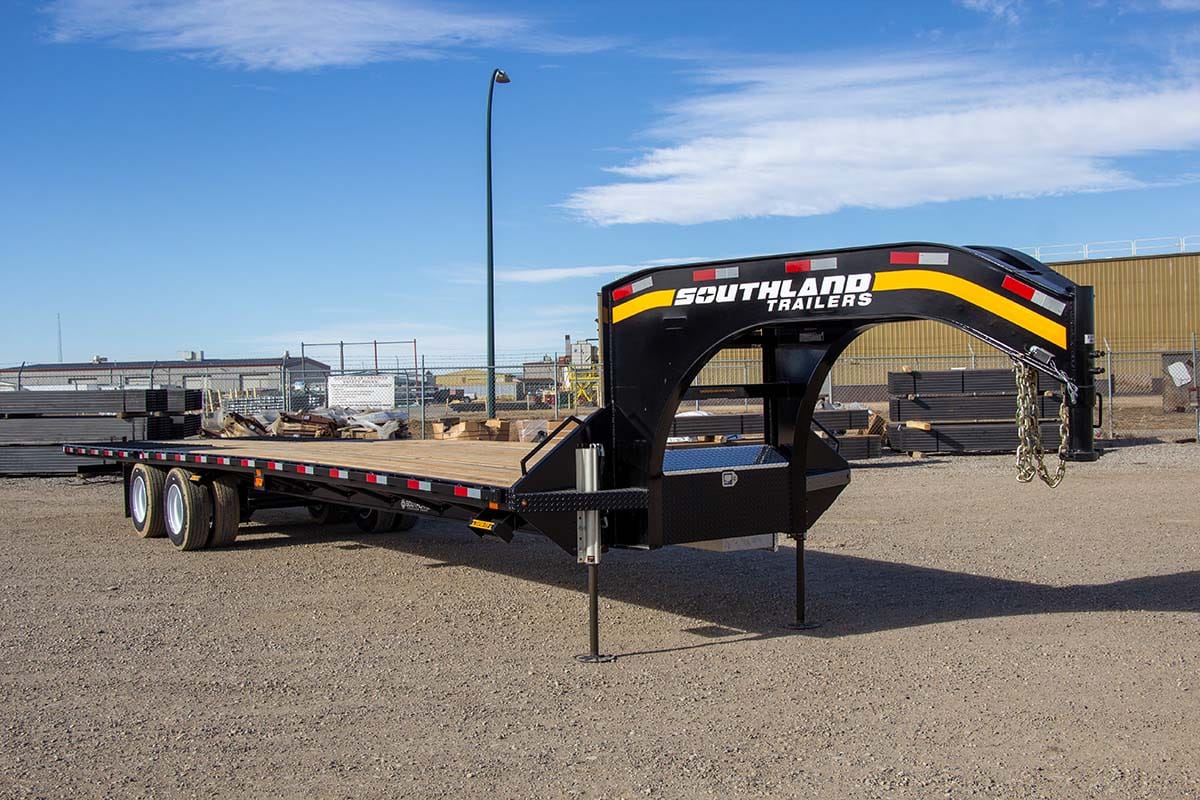

ETGT 10K,12K,16K - Hydraulic BT (1)

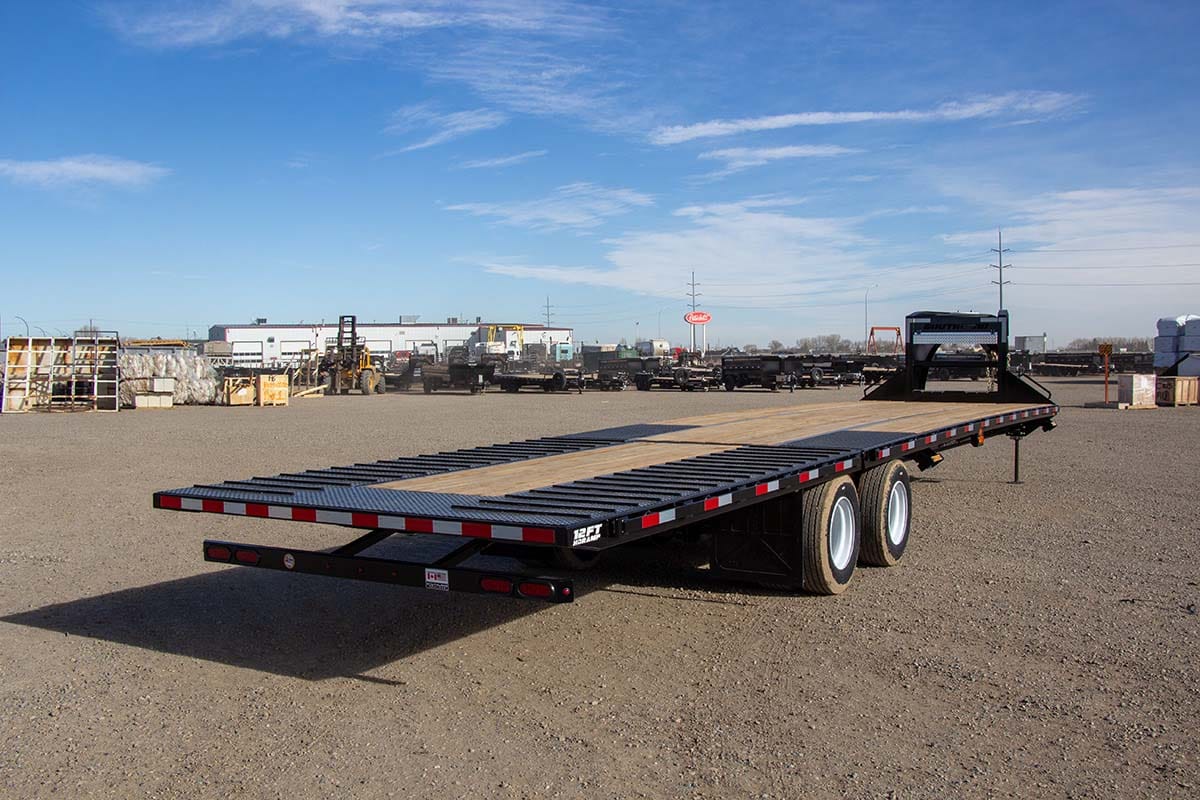

ETGT 10K,12K,16K - Hydraulic BT (2)

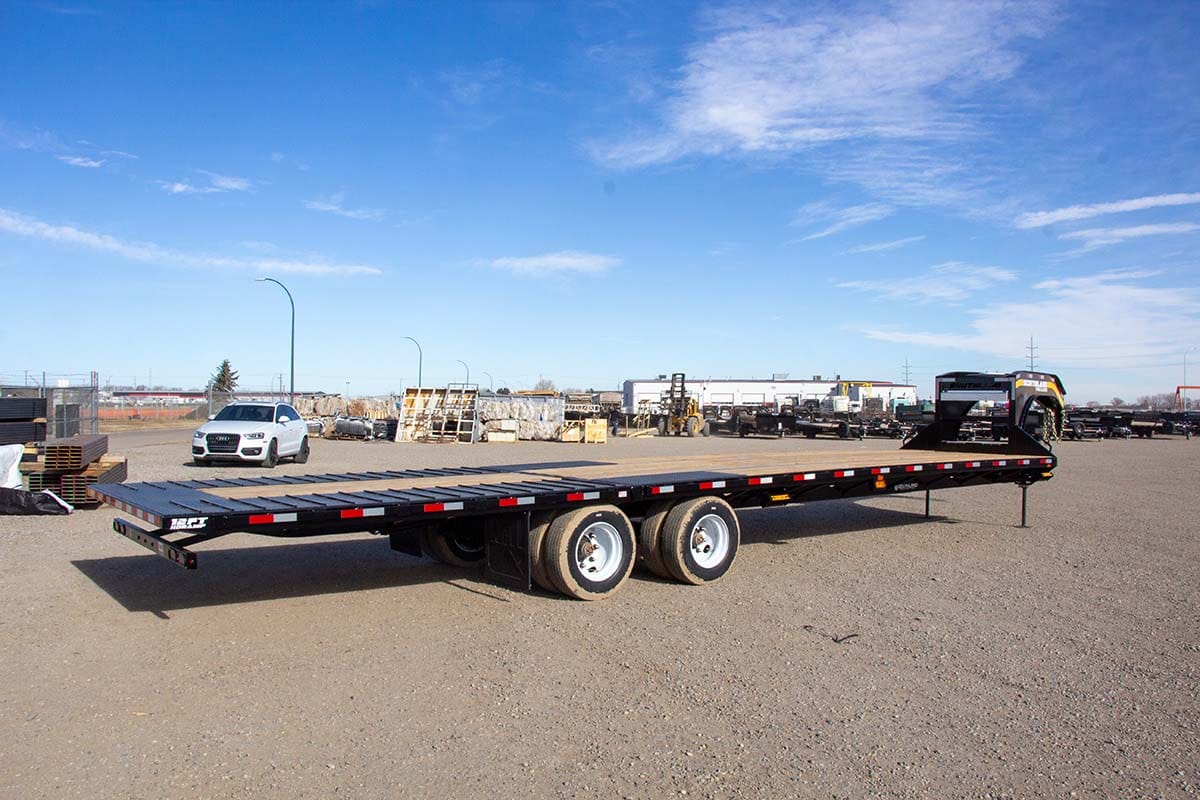

ETGT 10K,12K,16K - Hydraulic BT (3)

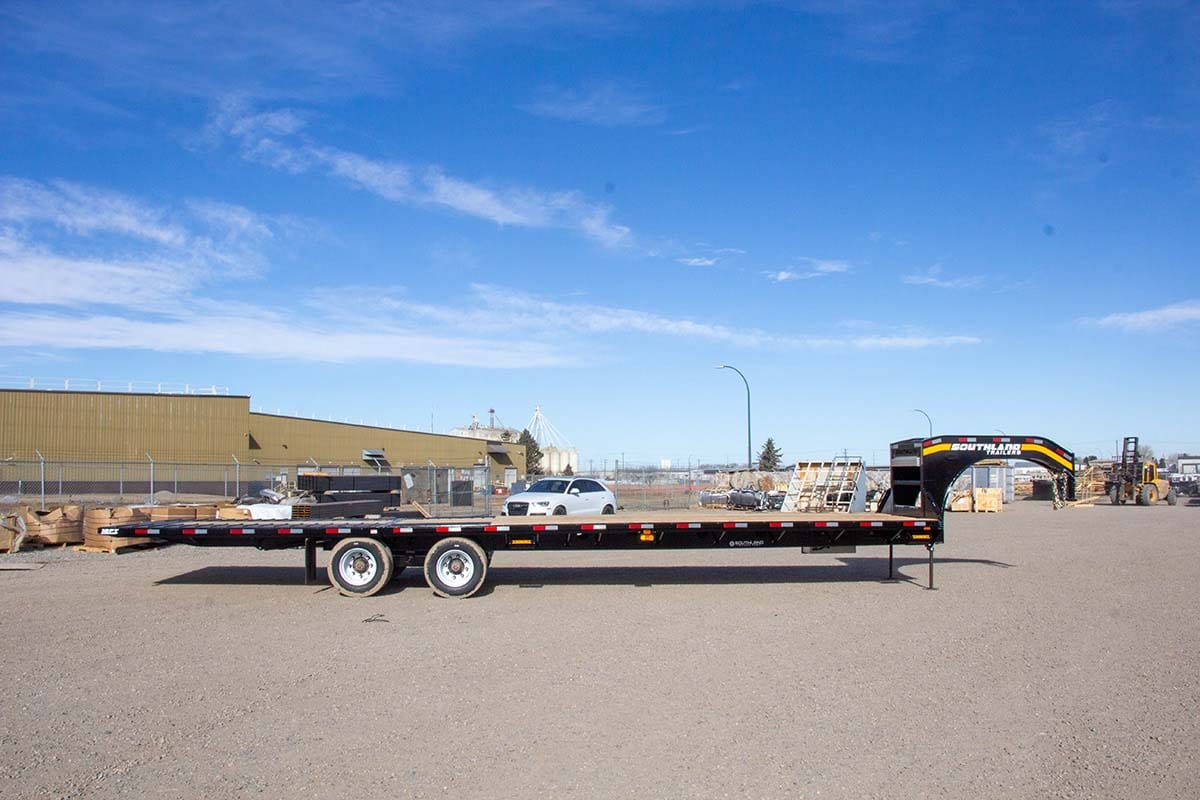

ETGT 10K,12K,16K - Hydraulic BT (4)
ETGT 10K,12K,16K - Hydraulic BT (1)
ETGT 10K,12K,16K - Hydraulic BT (2)
ETGT 10K,12K,16K - Hydraulic BT (3)
ETGT 10K,12K,16K - Hydraulic BT (4)

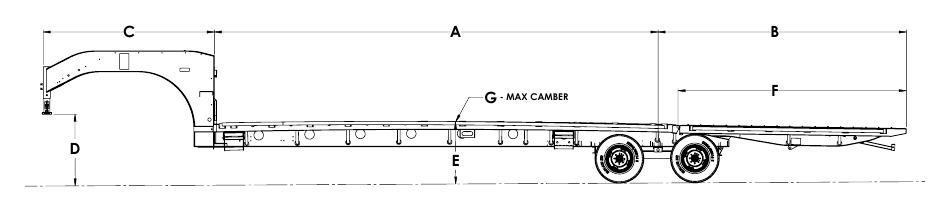

ETGT16_HBT_LineDrawing

Live Specifications

Download PDF
Axle (2) 16,000 lb
Coupler 2 5/16" Ball Coupler 30,000 lb
Safety Chains 45,200 lb 1/2" x 42.0" w/Clevis Slip Hook
Crossmember 1.25" SCH40 Steel Pipe
Lights L.E.D. DOT Stop, Tail, Turn & Clearance
Deck 2" x 8" Fir Plank Decking
Suspension Multi-Leaf Spring w/ Equalizer
Wheels ST235/80R16 E 10ply (source; axle-dependent wheel differences should be confirmed if needed)
Brakes Electric
Electric Plug Cold Weather 7 Wire RV Plug
Jack Hydraulic 14,000 lb. Bolt-On, 2.50" Bore, 20" Stroke
Frame 90ksi Engineered Pierced-Beams w/ S3.0" x 2.9 lb High Tensile 80ksi Super Lite I-Beams
Side Rails 5" x 2" HSS Tubing, 2" x 3/8" Flat Bar Rub Rails, Chain Spools & Stake Pockets
Neck Engineered One Piece Continuous Weld 90ksi Gooseneck
Rating Set Standard | Standard | Standard | Standard | Standard | Upgraded GVWR Option | Upgraded GVWR Option | Upgraded GVWR Option | Upgraded GVWR Option | Upgraded GVWR Option
Length (ft) 28 | 32 | 36 | 40 | 44 | 28 | 32 | 36 | 40 | 44
Net Weight (lb) 8300 | 8705 | 9105 | 9505 | 9905 | 8300 | 8705 | 9105 | 9505 | 9905
GVWR (lb) 30000 | 30000 | 30000 | 30000 | 30000 | 38000 | 38000 | 38000 | 38000 | 38000
Payload Capacity (lb) 21700 | 21295 | 20895 | 20495 | 20095 | 29700 | 29295 | 28895 | 28495 | 28095
Dimension A 182.5 | 230.5 | 278.5 | 326.5 | 374.5 | 182.5 | 230.5 | 278.5 | 326.5 | 374.5
Dimension B 155.125 | 155.125 | 155.125 | 155.125 | 155.125 | 155.125 | 155.125 | 155.125 | 155.125 | 155.125
Dimension C 107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625
Dimension D 42.125 | 42.125 | 42.125 | 42.125 | 42.125 | 42.125 | 42.125 | 42.125 | 42.125 | 42.125
Dimension E 36.625 | 37 | 37.5 | 38.125 | 38.875 | 36.625 | 37 | 37.5 | 38.125 | 38.875
Dimension F 143.625 | 143.625 | 143.625 | 143.625 | 143.625 | 143.625 | 143.625 | 143.625 | 143.625 | 143.625
Dimension G 0.6875 | 1.125 | 1.625 | 2.25 | 2.9375 | 0.6875 | 1.125 | 1.625 | 2.25 | 2.9375
