Technical Specs
Get the full breakdown of dimensions and capacities.

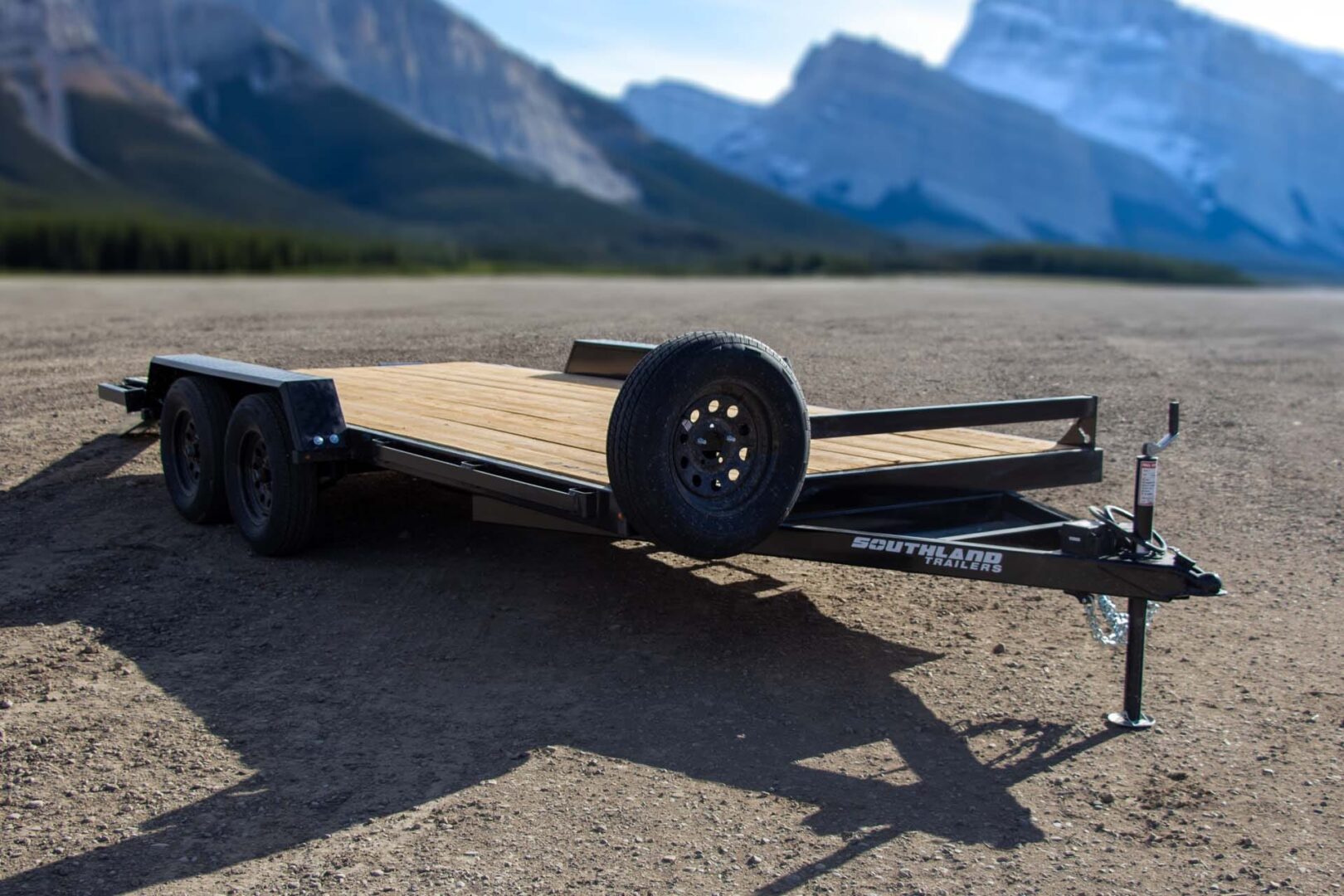

Car Hauler
Built for homeowners, collectors, and light-duty haulers who need a practical open trailer for moving vehicles, project cars, and small wheeled loads. The Southland Car Hauler combines a tough deck, protected wiring, and straightforward loading options in one road-ready trailer.
Build your trailer
Select your configuration below. Specs update automatically.
Axle Configuration
Deck Style
Live Specifications
Download PDF
Axle
(2) 5,200 lb Lippert Spring
Suspension
Multi-Leaf Spring w/ Equalizer
Wheels
225/75R15 D Steel
Brakes
Electric Self Adjusting
Jack
5,000 lb Top Wind Bolted
Coupler
21,000 lb Demco Adjustable
Frame
6 X 2 HSS
Ramp
Slide In or Flip Up, 4,000 lb
Crossmember
3" I-Beam 80 KSI
Tongue
6 X 2 HSS
Deck
HD Fir Plank
Electric Plug
7 Wire RV
Width Between Fenders
81"
Rating Set
Standard | Standard | Standard | Standard
Length (ft)
16 | 18 | 20 | 22
Net Weight (lb)
2190 | 2340 | 2490 | 2640
GVWR (lb)
11440 | 11440 | 11440 | 11440
Payload Capacity (lb)
9250 | 9100 | 8950 | 8800

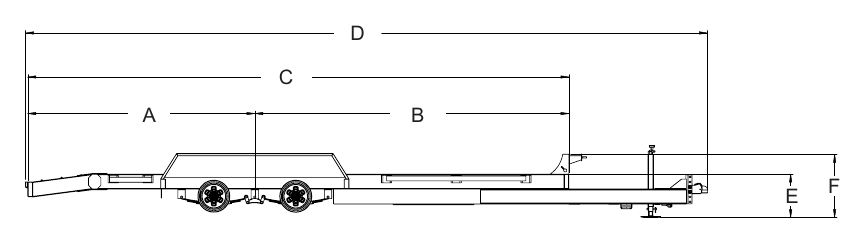

Dimension A
91" | 110" | 108" | 116"
Dimension B
127" | 132" | 158" | 174"
Dimension C
218" | 242" | 266" | 290"
Dimension D
274" | 298" | 322" | 346"
Dimension E
23" | 23" | 23" | 23"
Dimension F
31" | 31" | 31" | 31"
