Low Profile Equipment
Build your trailer
Select your configuration below. Specs update automatically.
Axle Configuration
Deck Style
Live Specifications
Download PDF
Axle
(2) 7,000 lb Lippert Spring
Suspension
Multi-Leaf Spring w/Equalizer
Wheels
235/80R16 E Steel
Brakes
Electric Self Adjusting
Jack
5,000 lb Top Wind Bolted
Coupler
21,000 lb Demco Adjustable
Frame
6 X 2 HSS

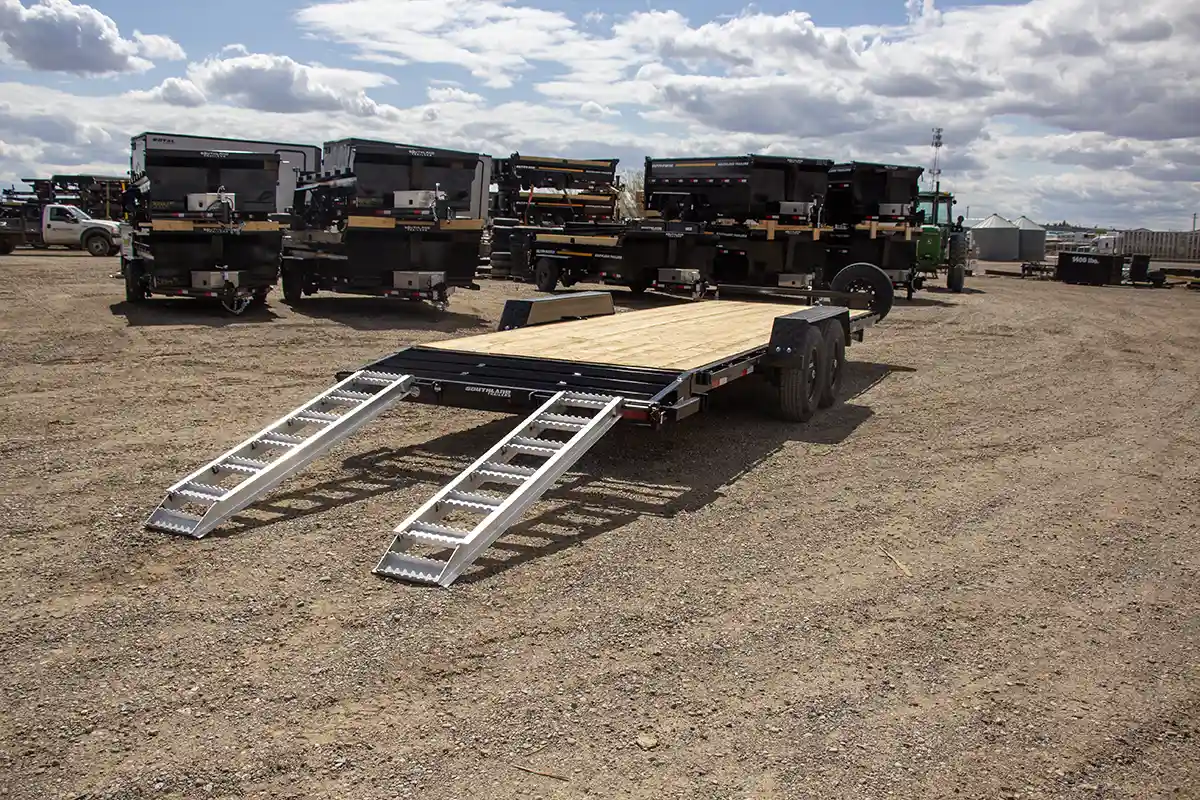

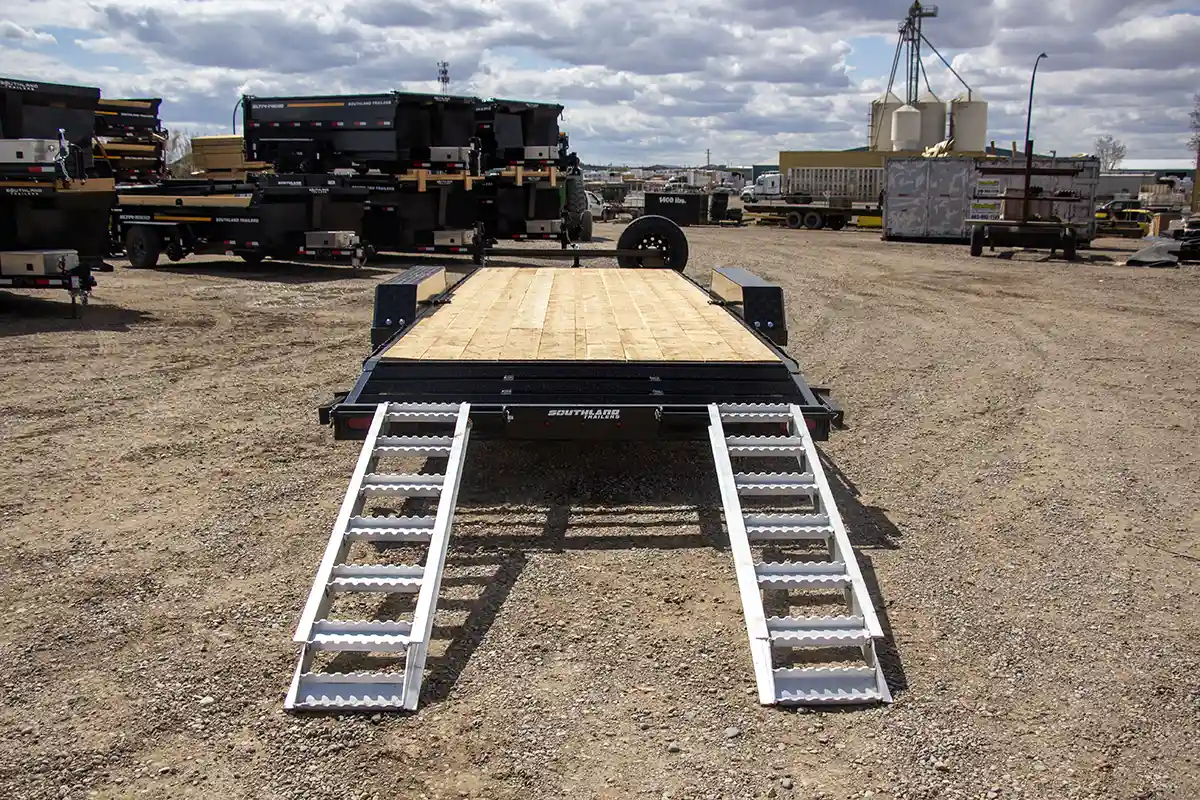

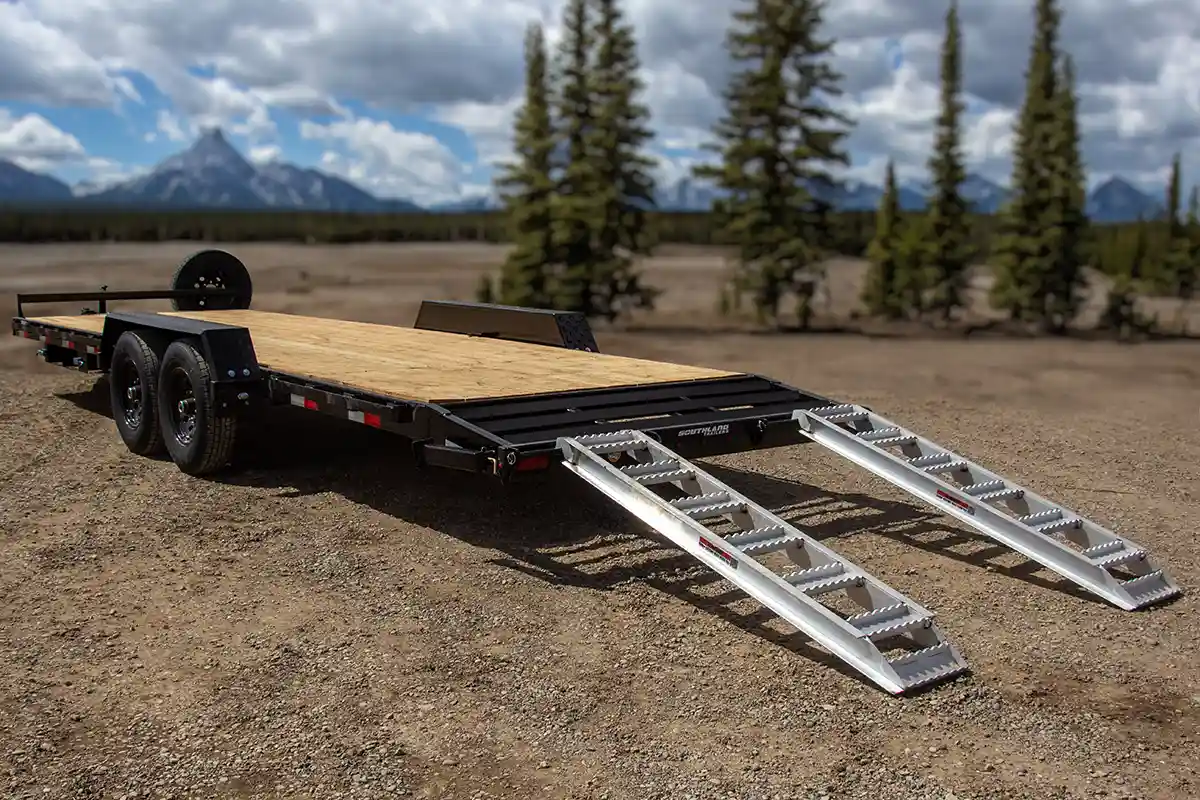

Ramp
Slide In or Flip Up, 4,500 lb
Crossmember
3” I-Beam 80 KSI
Tongue
6 X 2 HSS
Deck
HD Fir Plank
Electric Plug
7 Wire RV
Width Between Fenders
81”
Rating Set
Standard | Standard | Standard | Standard
Length (ft)
18 | 20 | 22 | 24
Net Weight (lb)
3020 | 3170 | 3320 | 3470
GVWR (lb)
15400 | 15400 | 15400 | 15400
Payload Capacity (lb)
12380 | 12230 | 12080 | 11930

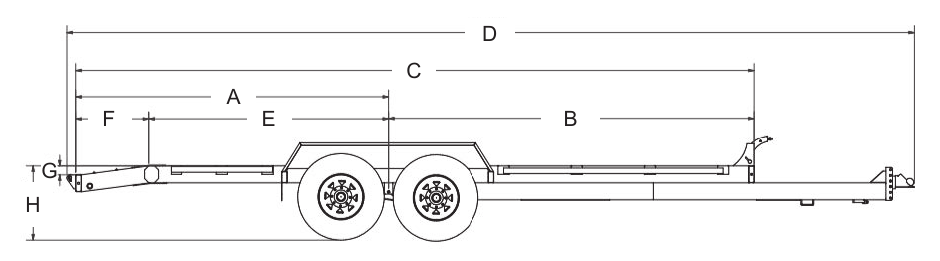

Dimension A
101” | 107” | 115” | 139”
Dimension B
141” | 159” | 175” | 175”
Dimension C
242” | 266” | 290” | 314”
Dimension D
298” | 322” | 346” | 370”
Dimension E
75” | 81” | 89” | 113”
Dimension F
26” | 26” | 26” | 26”
Dimension G
3” | 3” | 3” | 3”
Dimension H
24 1/2” | 24 1/2” | 24 1/2” | 24 1/2”
