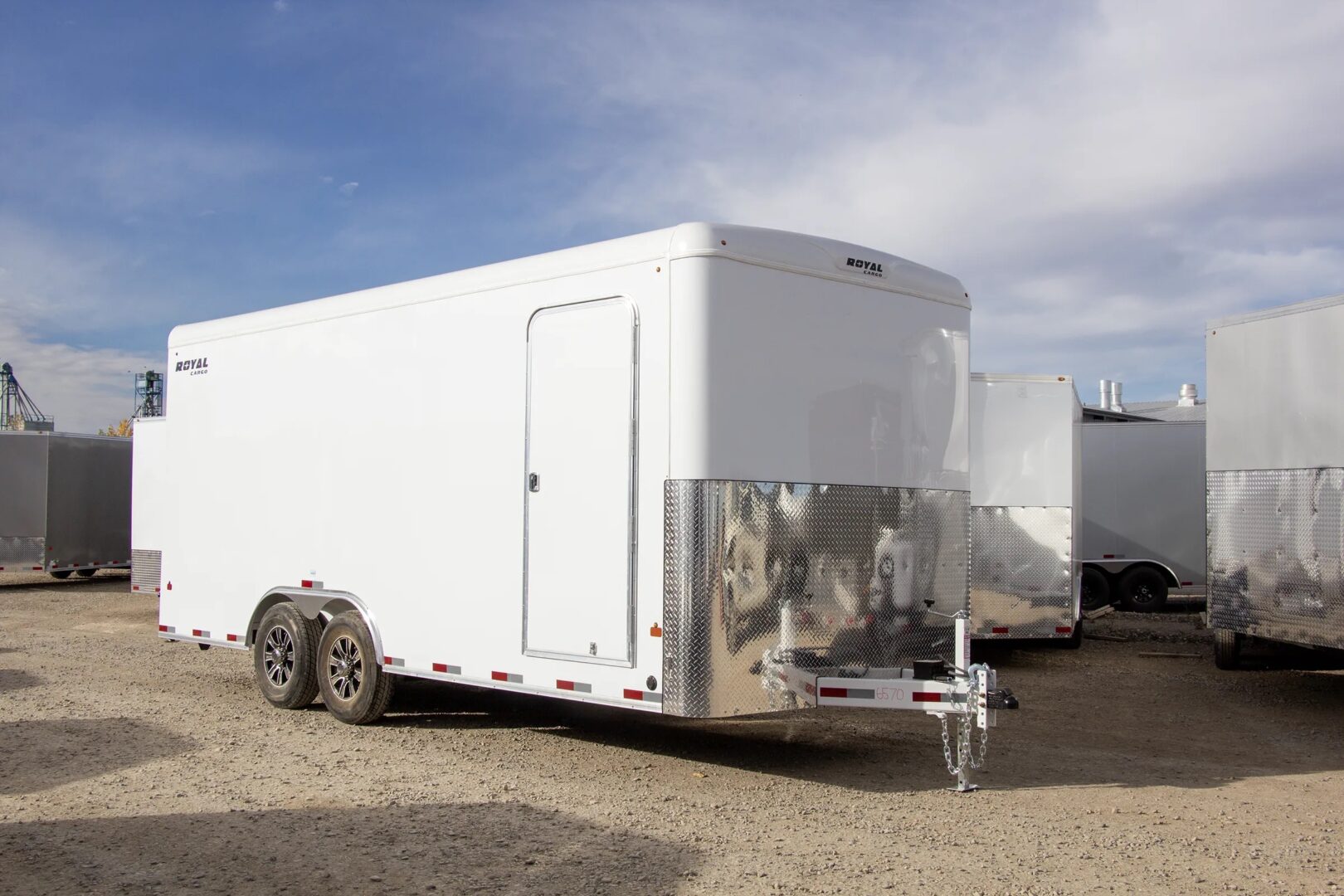

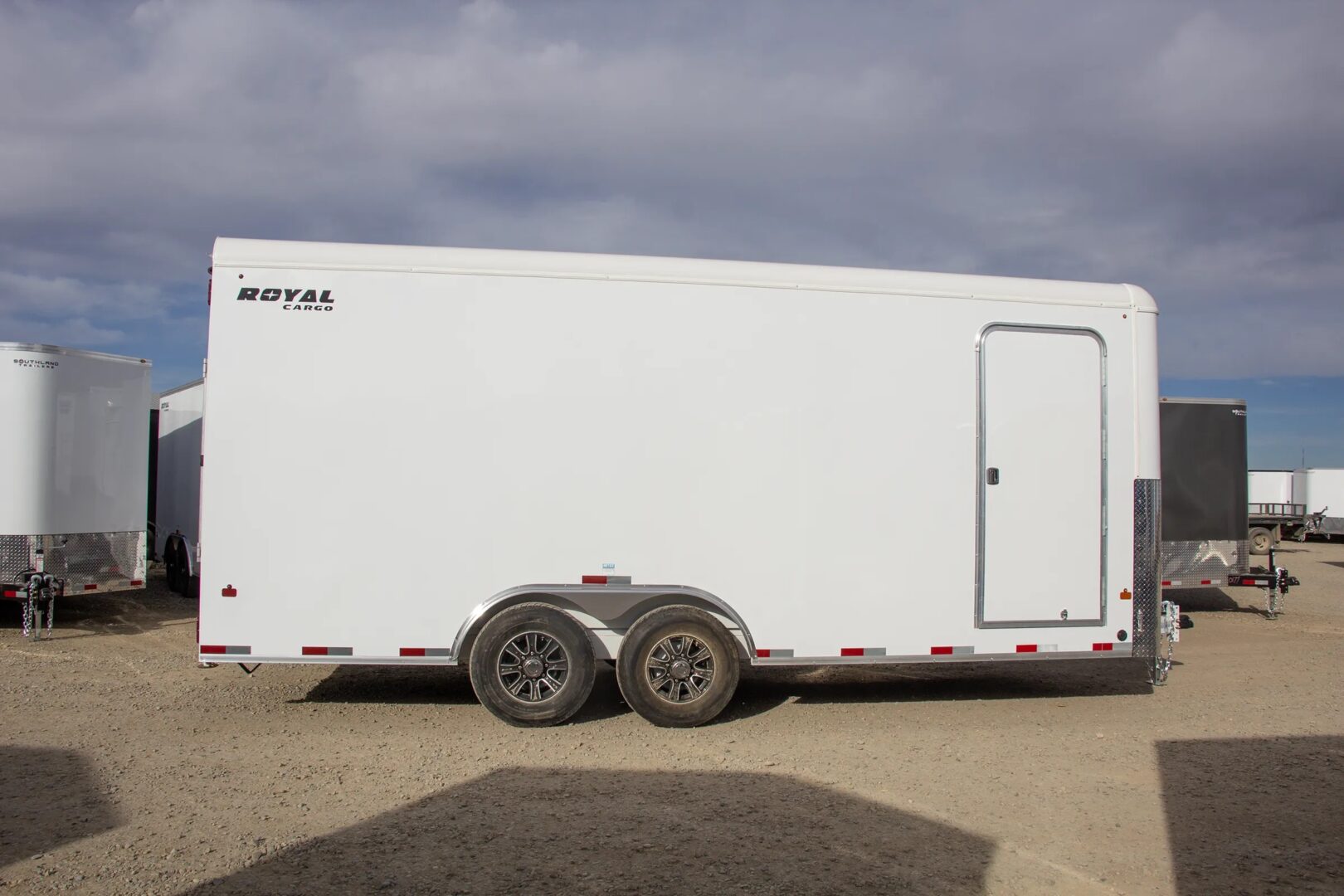

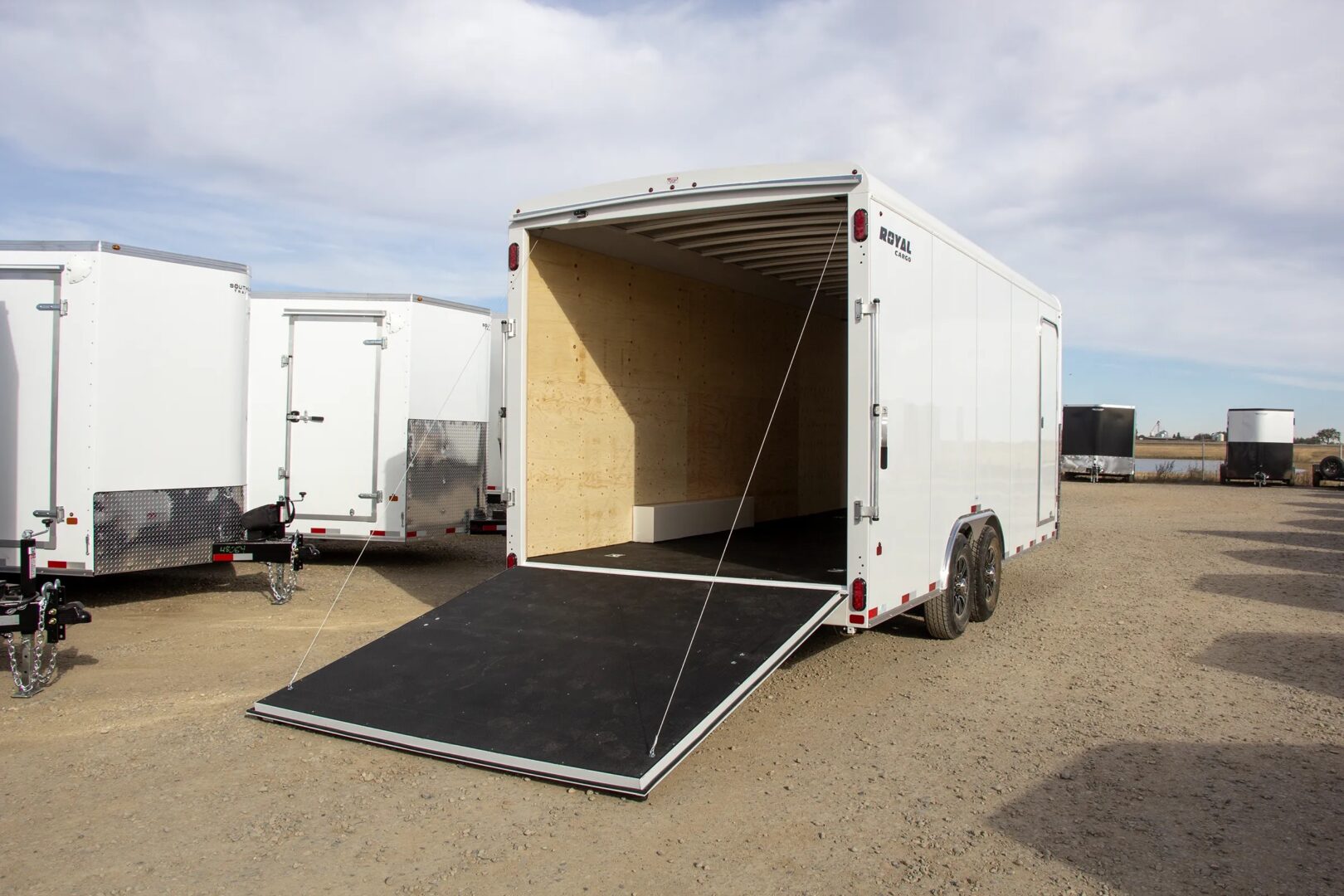

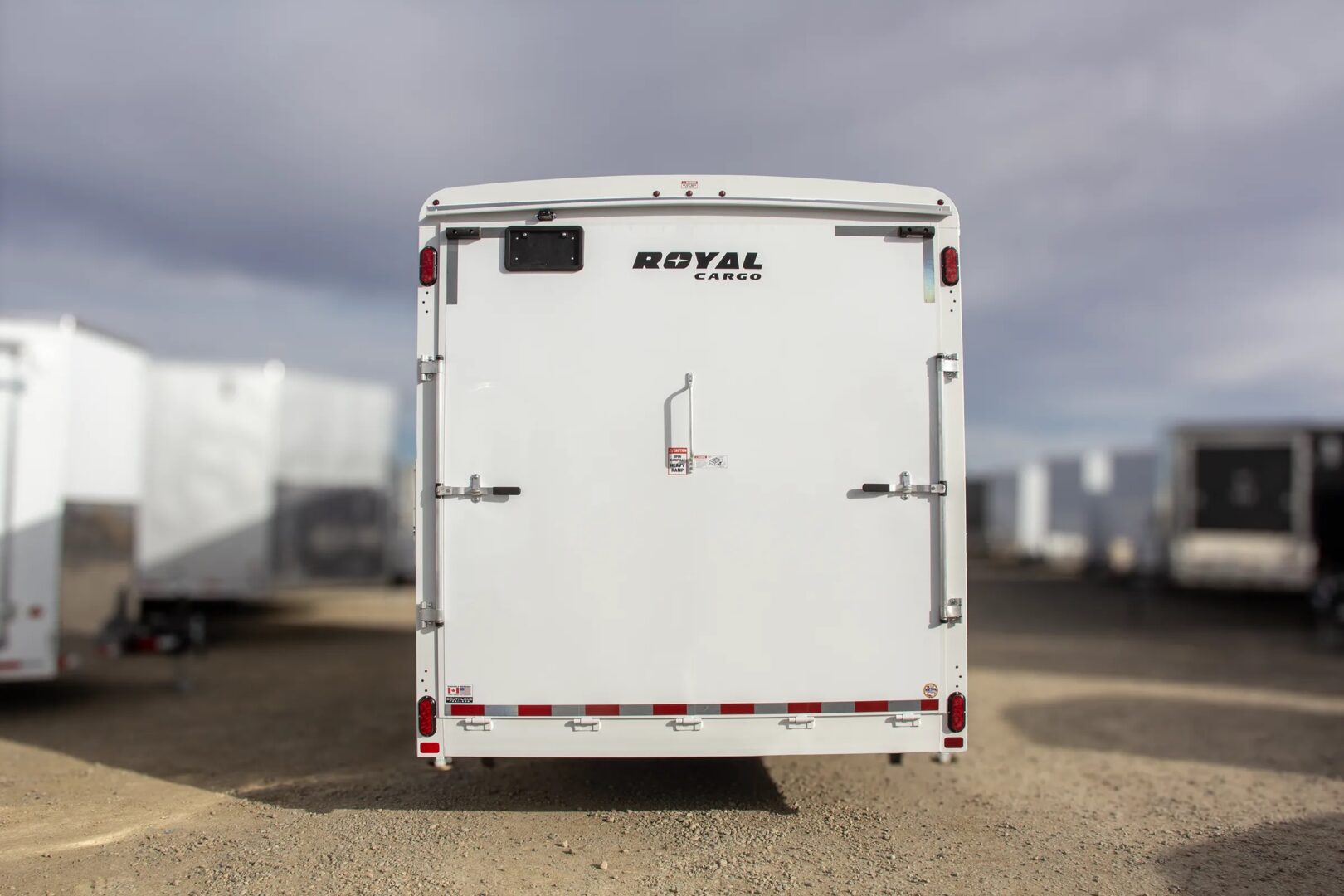

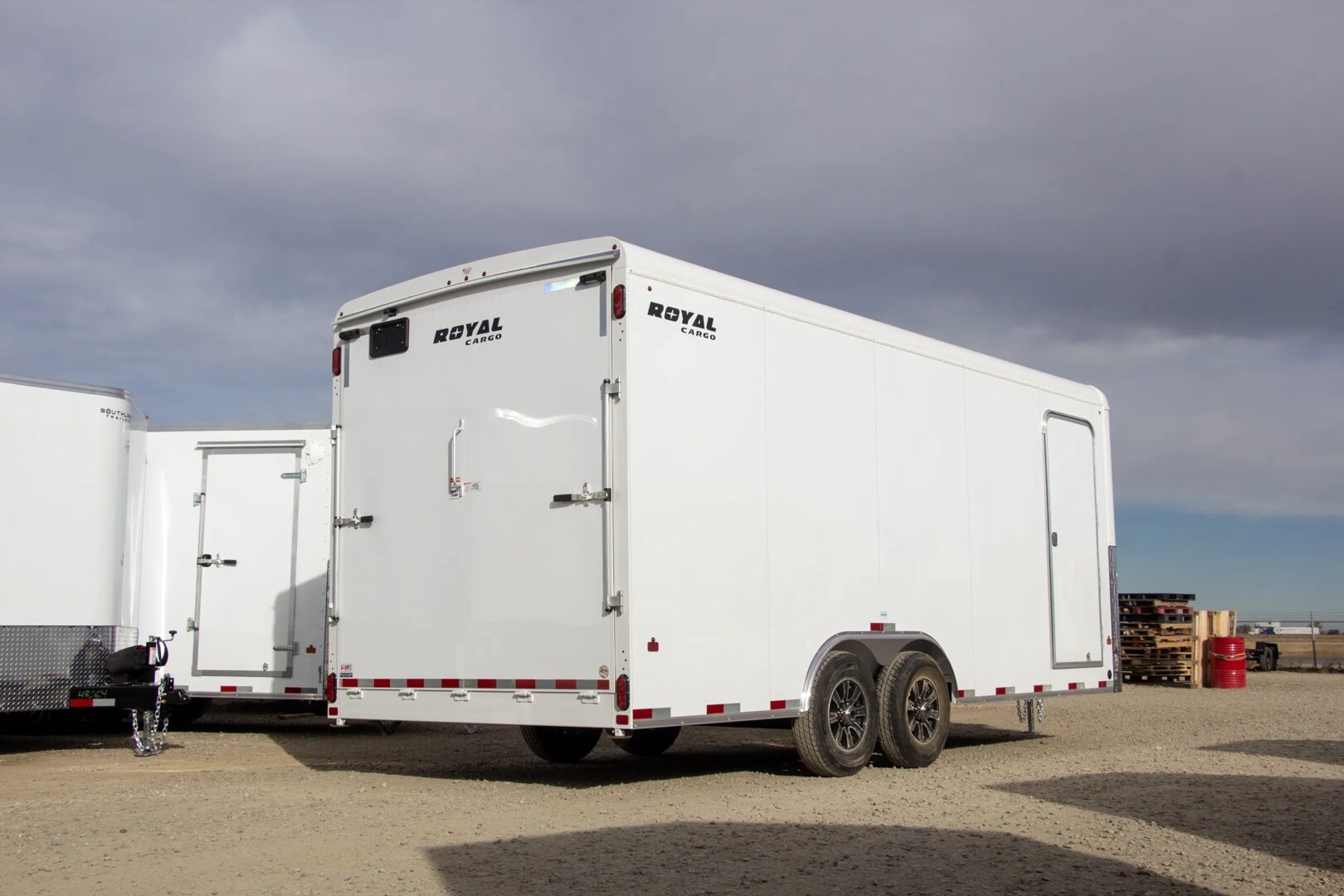

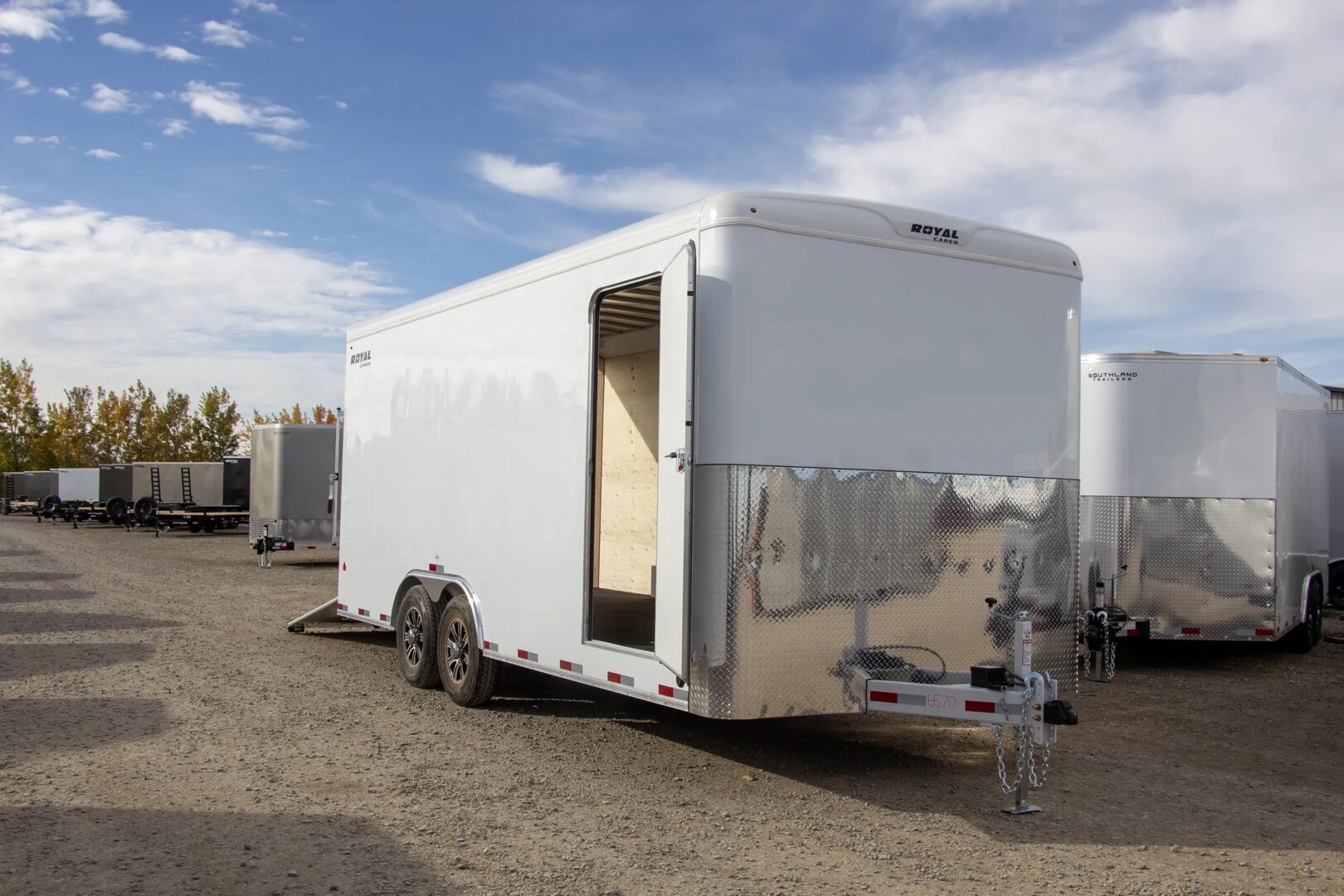

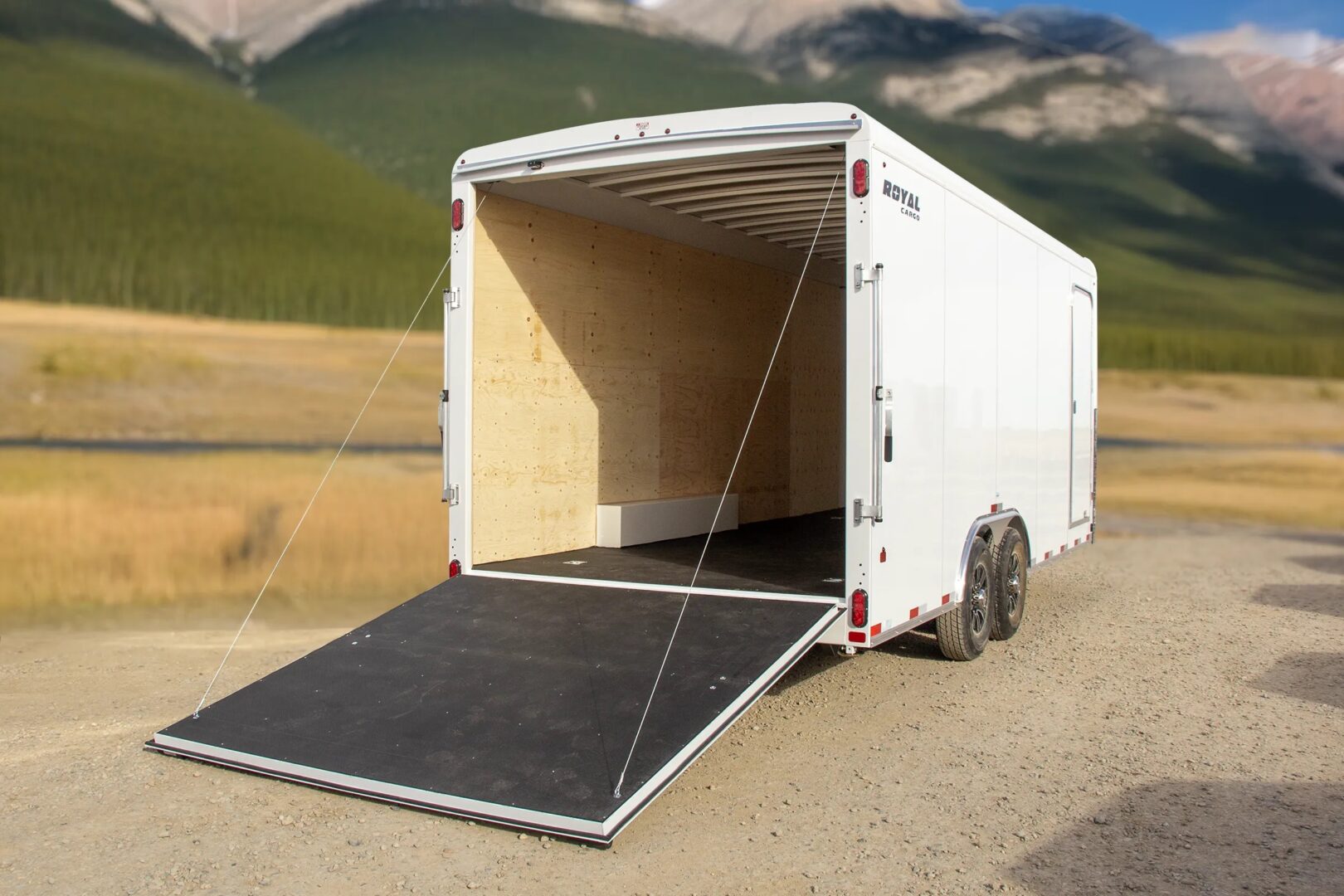

Royal Original Commercial Cargo
Build your trailer
Select your configuration below. Specs update automatically.
Width
Frame Style
Live Specifications
Download PDF
Axle
(2) 7,000 lb. Lippert Torsion
Brakes
Electric Self-Adjusting
Coupler
21,000 lb. Demco Adjustable
Jack
5,000 lb. Top-Wind
Side Door
36” x 72” with RV Latch
Floor D-Rings
2,000 lb.
Main Rails
Steel HSS 6.0” x 2.0”
Crossmembers
Steel HSS 2.0” x 2.0”
Floor
3/4” Nudo Poly Floor
Walls
3/8” Plywood
Wheels
235/80R16 E Aluminum
Electric Plug
7 Wire Plug
Ramp
800 lb. Midspan
Rating Set
Standard | Standard | Standard
Length (ft)
16 | 20 | 24
Net Weight (lb)
3315 | 3712 | 4109
GVWR (lb)
15400 | 15400 | 15400
Payload Capacity (lb)
12085 | 11688 | 11291

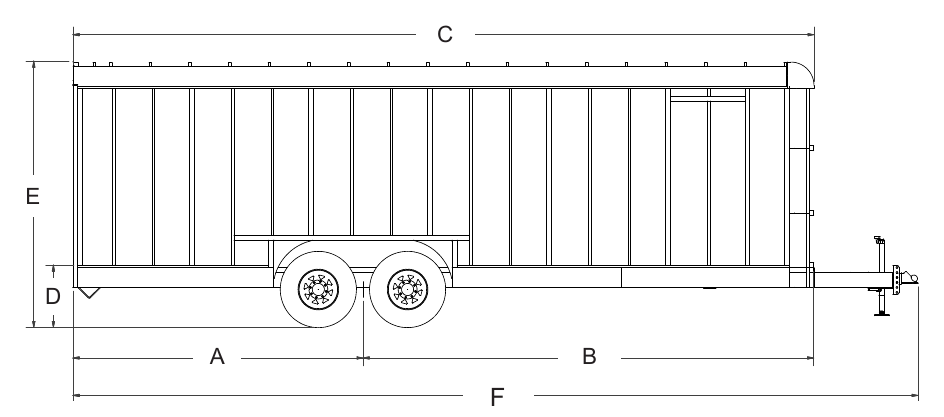

Dimension A
77” | 97” | 117”
Dimension B
125 13/16” | 153 13/16” | 181 13/16”
Dimension C
202 13/16” | 250 13/16” | 298 13/16”
Dimension D
25” | 25” | 25”
Dimension E
113 5/16” | 113 5/16” | 113 5/16”
Dimension F
244 11/16” | 292 11/16” | 340 11/16”
