The 2013/14 XR Sled line up is going to be the hottest thing around in the cold months head. Southland Trailers leads the way again with an industry first, a new HD Ramp system that doesn’t`t use cables. With a load capacity rated to 3000 lbs. and a new spring assisted Easy Lift Door, loading your snow machine just got that much easier and safer.

The XR Sled is our best selling and most popular trailer for winter work and winter fun. With axle capacities ranging from 3500 lbs to 6000 lbs, the XR Sled is strong enough to haul even the biggest snow machines.

The XR Sled is designed for easy on/off loading of your sleds. The ramp system incorporates ski guides for safety and with the optional heater unit, helmet cabinets and access doors, the XR Sled simply stands above the rest.

The XR Sled’s versatility really shows in the available options and customizations. Work on your machine in a well lit and warm interior with options such as extra lighting and heater packages.

The Easy-lift Cable Free Ramp System is the newest modification to the XR Sled design. Ski Guides and a Super Heavy Duty Reflex Finish combine to reduce loading wear and tear and increase the safety factor.

Contact Information

For trailer inventory or sales inquires please use the DEALER LOCATOR.

1405 – 41 Street North
Lethbridge, Alberta
T1H 6G3
PHONE:
403-327-8212

You Might Also Like

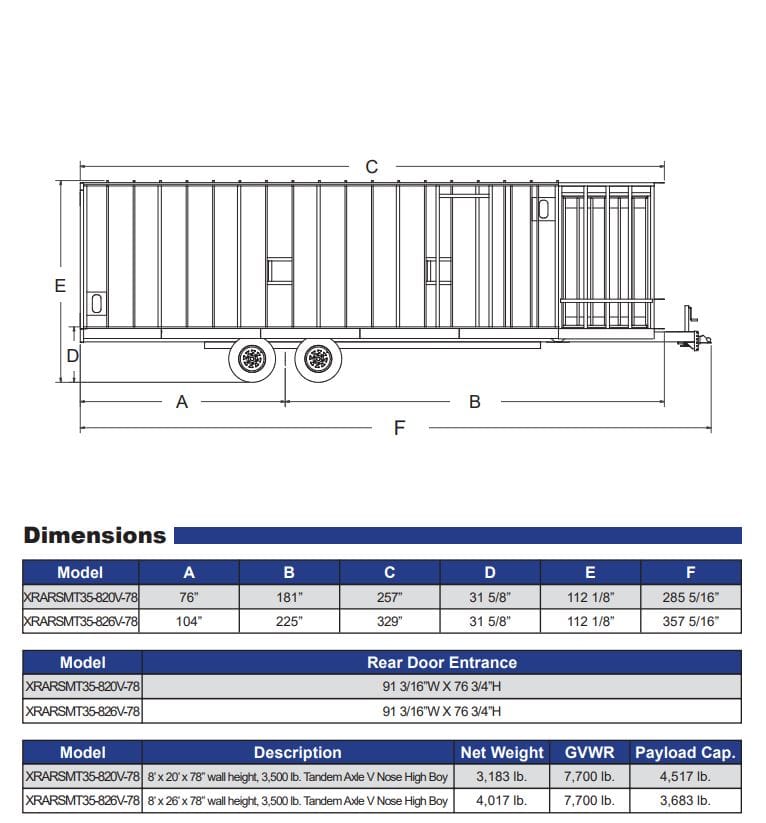

Standard Features

Overall Length23′
Overall Width8.5’
Overall Height9.25′
Interior Length20.4′
Interior Width96″
Interior Height78″
Rear Door Width89″
Rear Door Height74″
Axle3500(2) lbs.
BrakesElectric
TiresST205/R15
Rims15“ Aluminum
Jack5000 lbs. Drop Leg
Coupler2-5/16”
Platform Height31″
Main Frame Tubing6″ x 2″
GVWR (lbs.)3545kg/ 7799 lbs.
ModelXR3 XRARSMT35-820-78

Colours
